4-51

Wireless Local Area Networks (WLANs)

Configuring a WLAN

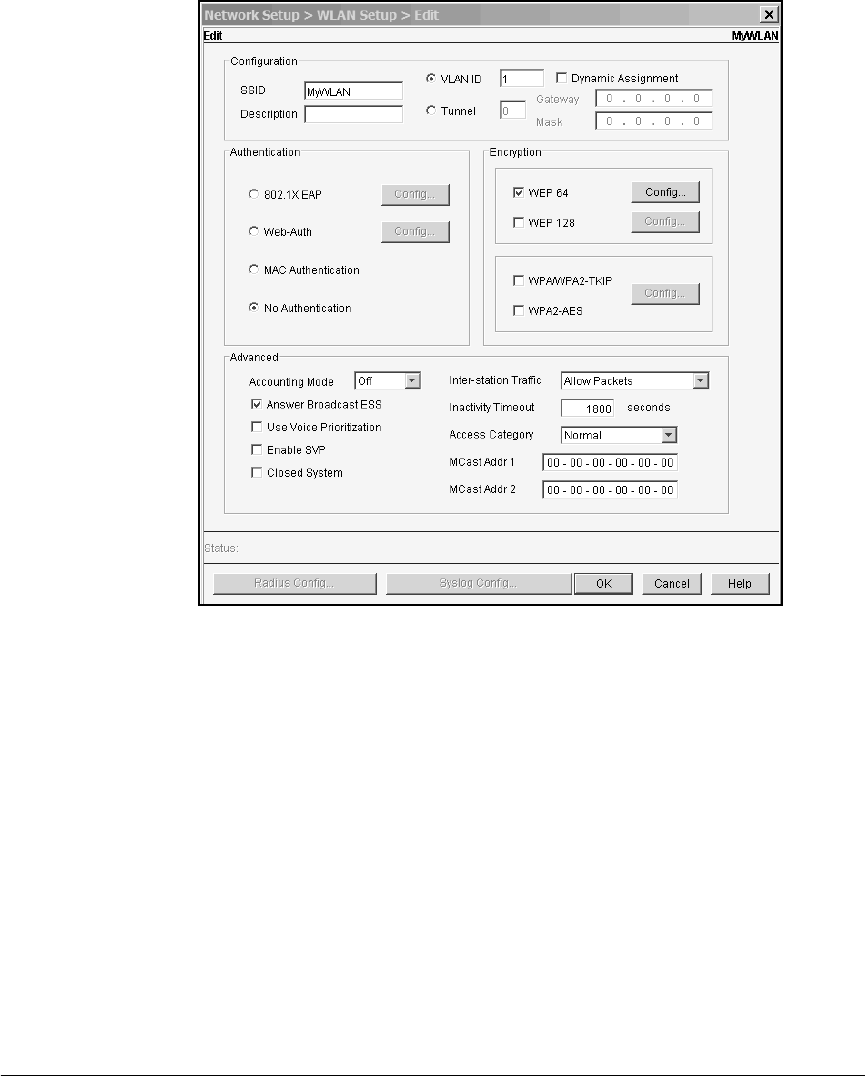

Figure 4-30. Configuring WEP Encryption with No Authentication

2. Under Authentication, select No Authentication.

3. Under Encryption, check either the WEP 64 or WEP 128 box.

4. Click the corresponding Config button. The WEP 64 or WEP 128 screen is

displayed.
