4-54

Wireless Local Area Networks (WLANs)

Configuring a WLAN

To configure this type of security for a WLAN, complete these steps:

1. Access the Edit screen for the WLAN that is to use dynamic WEP:

a. Select Network Setup > WLAN Setup and click the Configuration tab.

b. Select the WLAN and click the Edit button. The Edit screen is displayed.

(See Figure 4-30.)

2. Enable 802.1X authentication and specify the RADIUS server. (See

“802.1X EAP” on page 4-35.)

3. On the WLAN’s Edit screen, under Encryption, check either the WEP 64 or

WEP 128 box, as shown in Figure 4-32.

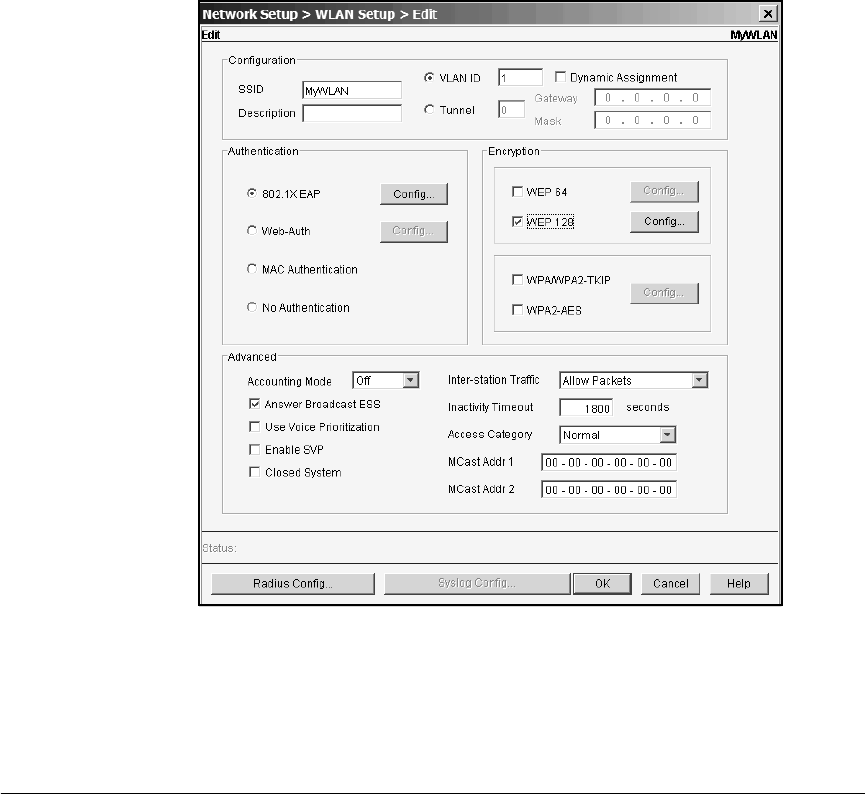

Figure 4-32. Specifying WEP Encryption with 802.1X Authentication

(Dynamic WEP)

Do not select the Config button to configure the WEP key; the RADIUS

server automatically generates and sends the dynamic WEP keys to

successfully authenticated users.
