4-60

Wireless Local Area Networks (WLANs)

Configuring a WLAN

2. Under Authentication, select No Authentication.

3. Under Encryption, select your encryption protocol:

• To use TKIP, check the WPA/WPA2-TKIP box.

The Wireless Edge Services xl Module and wireless stations will use

TKIP for all encryption. Note that both WPA and WPA2 stations can

connect, but WPA2 stations will use TKIP.

• To use AES, check the WPA2-AES box.

This option forces all wireless stations to use AES, the most secure

algorithm used for wireless encryption.

• To allow both protocols (mixed-mode), check both boxes.

4. Specify the preshared key that users must enter to connect to the WLAN.

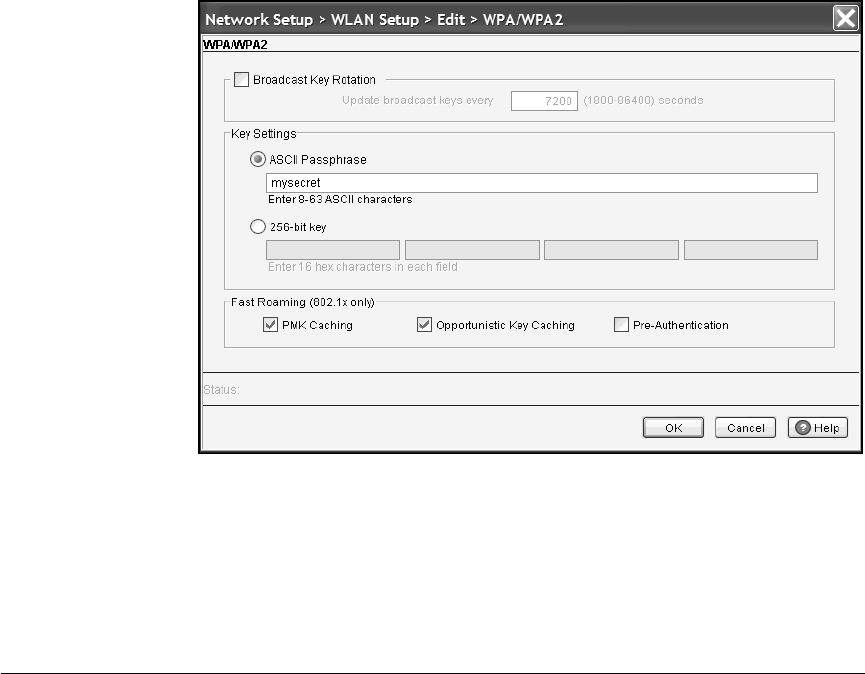

a. Click the Config button next to the WPA encryption options. The WPA/

WPA2 screen is displayed.

Figure 4-36. Configuring a Key for WPA/WPA2 Encryption with No Authentication
