4-72

Wireless Local Area Networks (WLANs)

Configuring a WLAN

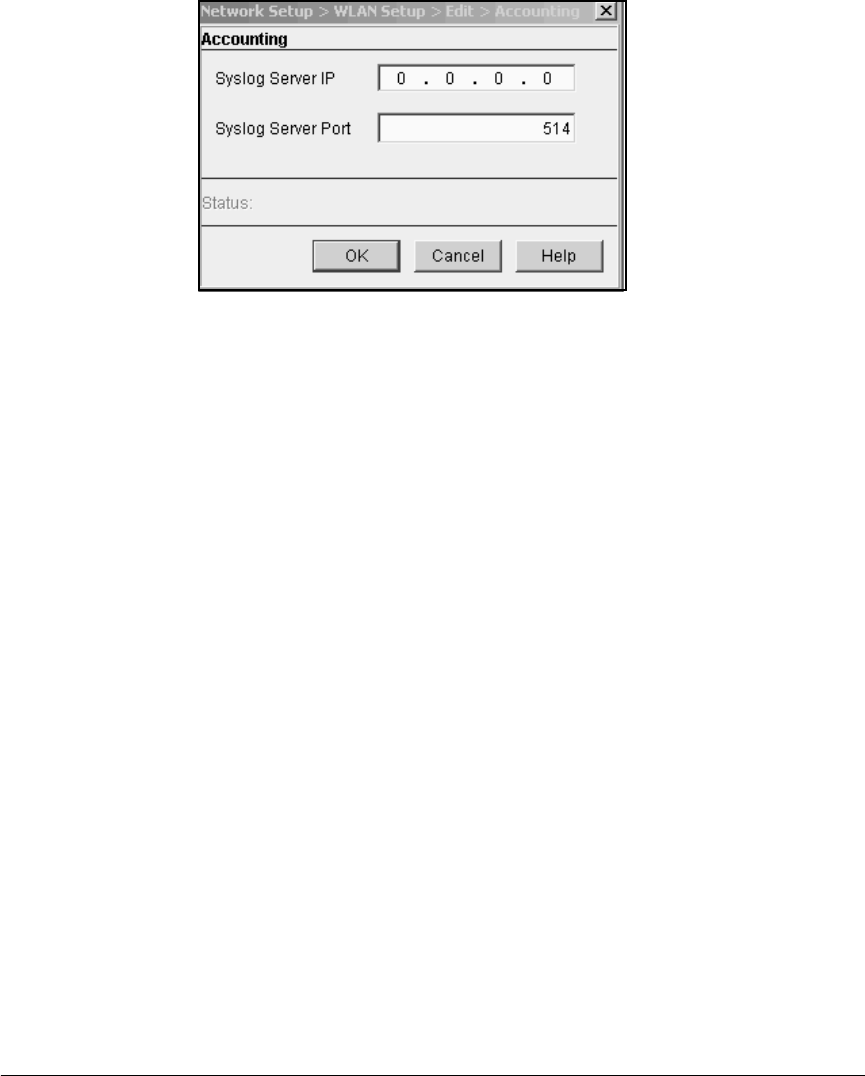

Figure 4-41. Specifying the Syslog Server

5. In the Syslog Server IP field, specify the Syslog server’s IP address.

6. In the Syslog Server Port field, enter your server’s UDP port or keep the

default 514.

7. Click the OK button.

8. In the WLAN’s Edit screen, click the OK button.

9. Click the Save link at the top of the Web browser interface to save the

changes to the startup-config.

Enabling RADIUS Accounting on a WLAN

To activate RADIUS accounting on a WLAN, follow these steps:

1. Select Network Setup > WLAN Setup > Configuration.

2. Select the WLAN from the list and click the Edit button. The Edit screen

for the WLAN is displayed.
