4-77

Wireless Local Area Networks (WLANs)

Configuring a WLAN

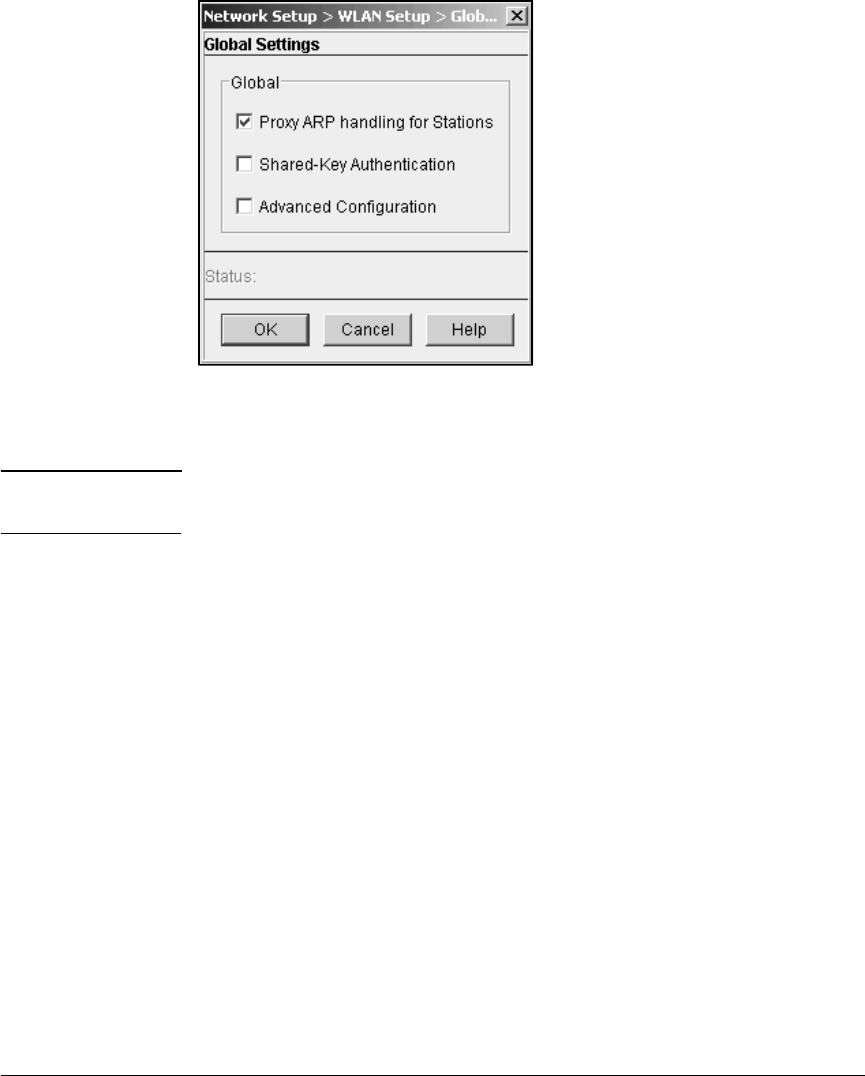

Figure 4-44. Global WLAN Settings Screen

3. Check the boxes for the features that you want to enable.

Note The Advanced Configuration selection refers to how SSIDs are assigned to RP

radios; see “Advanced Mode Configuration” on page 4-11.

4. Click the OK button.

Enabling the WLAN

RPs in your wireless network will not support the WLAN until you enable it.

To enable the WLAN, complete these steps:

1. Select Network Setup > WLAN Setup and click the Configuration tab.

2. Select the WLAN that you want to enable. You can use the

<Ctrl> key to

select multiple WLANs.

3. Click the Enable button.

The icon in the Enabled column should change from a red X to a green

check mark, as shown in Figure 4-45.
