4-79

Wireless Local Area Networks (WLANs)

Configuring a WLAN

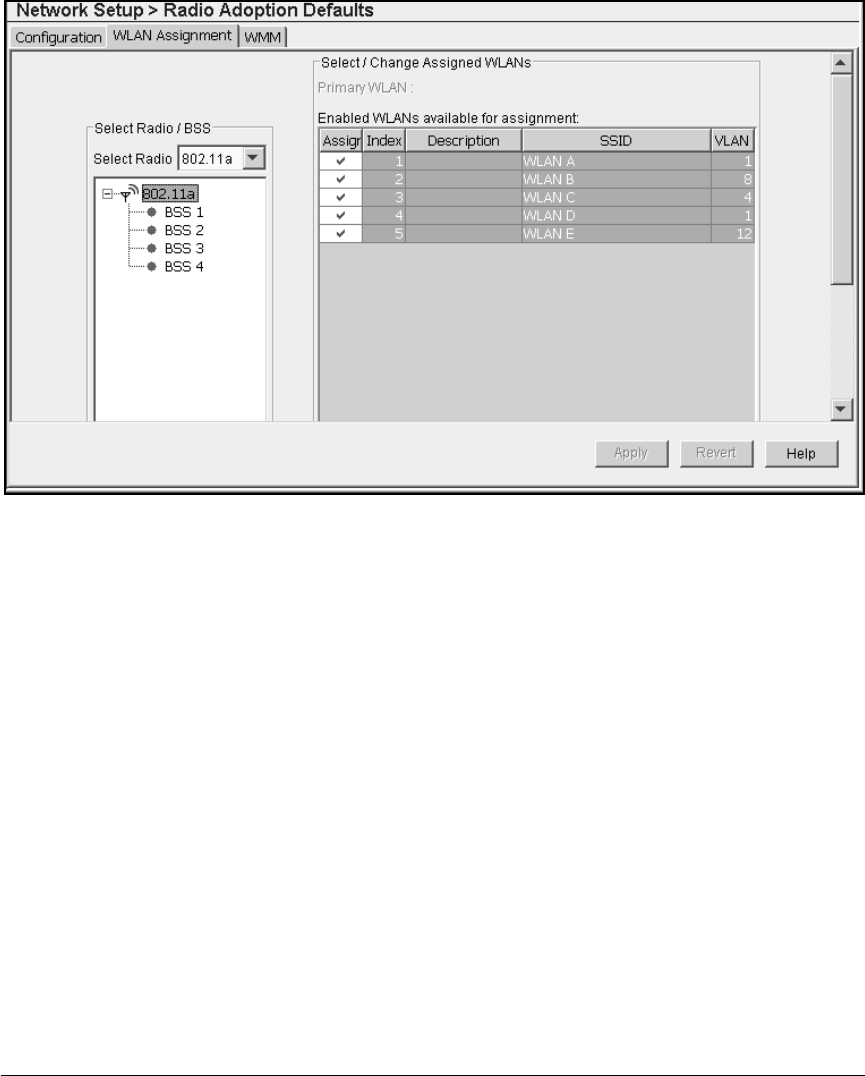

Figure 4-46. Viewing the WLANs Assigned to Radios in the Default Configuration

The radio supports all five WLANs. However, some of the WLANs share a

BSSID. For example, when BSS 1 is selected in the section on the left, the

section on the right shows the two WLANs that share this BSSID. See

Figure 4-47.
