4-83

Wireless Local Area Networks (WLANs)

VLAN Assignment

WLAN-Based VLAN Assignment

You configure WLAN-based VLAN assignment by manually assigning the

WLAN to a VLAN.

Typically, you complete this step at the same time that you configure the SSID

and security settings, as described in “Setting Basic Configuration Options:

SSID and Interface” on page 4-30 and as shown in Figure 4-49.

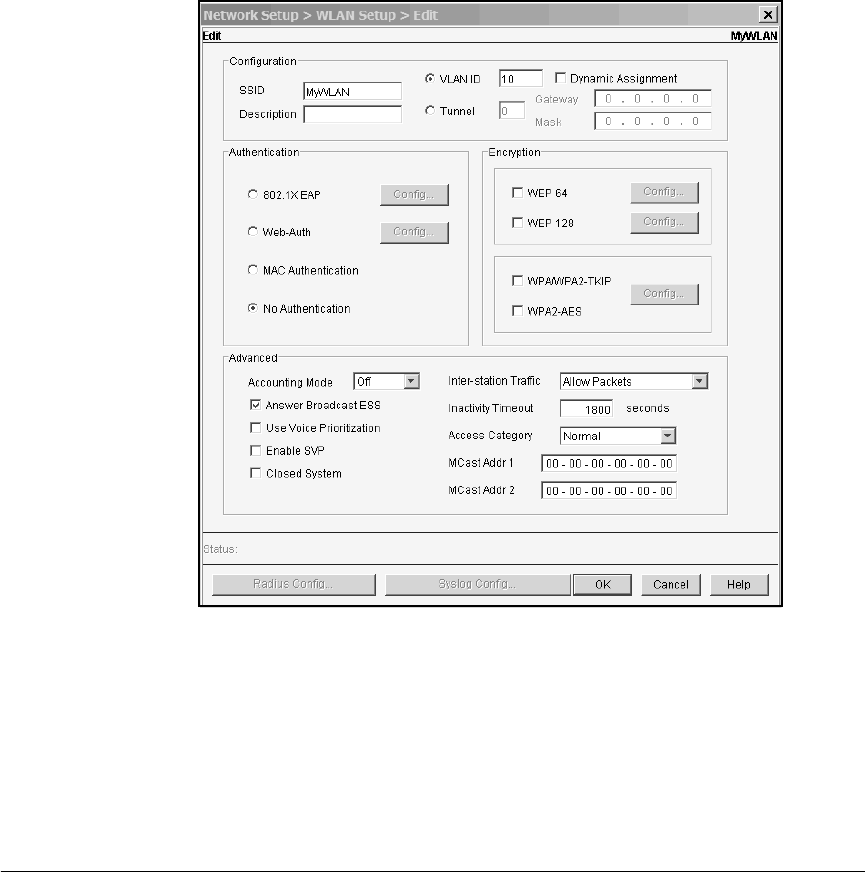

Figure 4-49. Configuring WLAN-Based VLAN Assignment

You can quickly change the interface assignment for multiple WLANs by

selecting the VLAN/Tunnel Assignment tab on the Network Setup > WLAN Setup

screen, as shown in Figure 4-50.
