Wireless Local Area Networks (WLANs)
VLAN Assignment

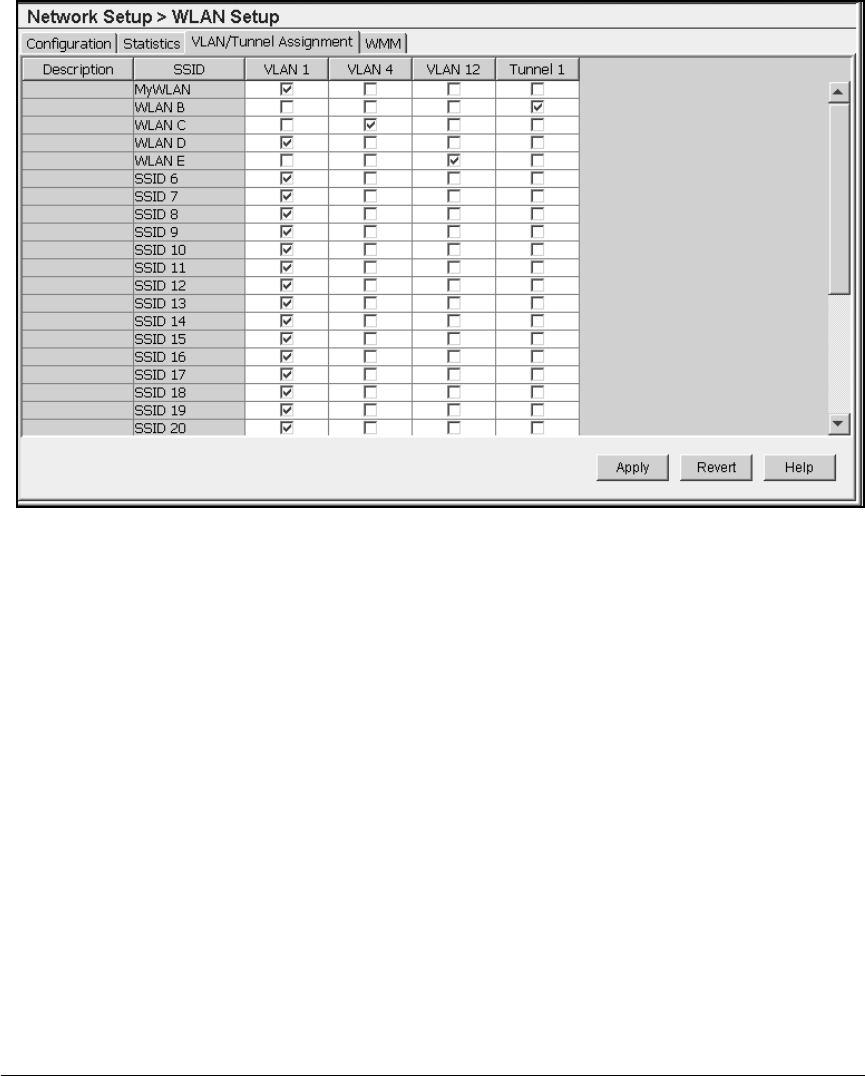

Figure 4-50. Network Setup > WLAN Setup > VLAN/Tunnel Assignment Screen
In the first two columns, the Network Setup > WLAN Setup > VLAN Assignment
screen shows this information for each WLAN:
■ Description (if configured)
■ SSID
All the VLANs to which at least one WLAN has been assigned compose the
subsequent columns. If you have configured a WLAN to forward traffic over
a tunnel, the tunnel interface is also displayed, as shown in Figure 4-50.
The check mark indicates to which interface the WLAN has been assigned.
For example, Figure 4-50 shows the Network Setup > WLAN Setup > VLAN/
Tunnel Assignment screen for a Wireless Edge Services xl Module on which five
WLANs have been configured and enabled. These WLANs have been assigned
to a variety of VLAN interfaces and to one tunnel interface. You can change
the VLAN assignment for any of the WLANs simply by checking the box in the
new column. Note that because a WLAN can only be manually assigned to a
single VLAN, the check mark in the previous column automatically disappears.
