Wireless Local Area Networks (WLANs)
VLAN Assignment
Note When the Wireless Edge Services xl module places traffic in a VLAN, it tags it
for that VLAN. You must remember to tag the module’s uplink port for each
VLAN to which you manually assign a WLAN. (For more on configuring the
wireless services-enabled switch, see the Wireless Edge Services xl MOdule
Supplement to the ProCurve 6400cl/5300xl/3400cl Management and Config-
uration Guide.)

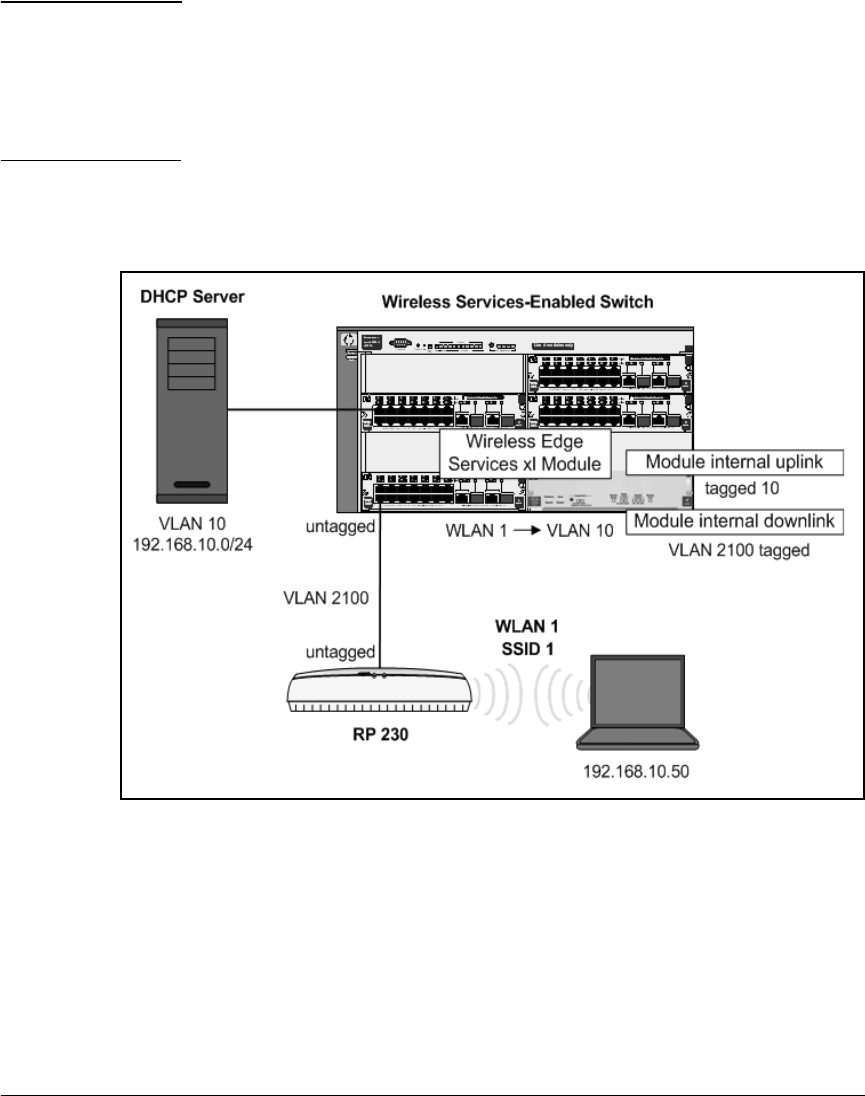

Figure 4-51 illustrates how a station connects a WLAN and receives an address
in the appropriate subnetwork from the network’s DHCP server.
Figure 4-51. Assigning a Wireless Station to a VLAN
