4-95

Wireless Local Area Networks (WLANs)

Traffic Management (QoS)

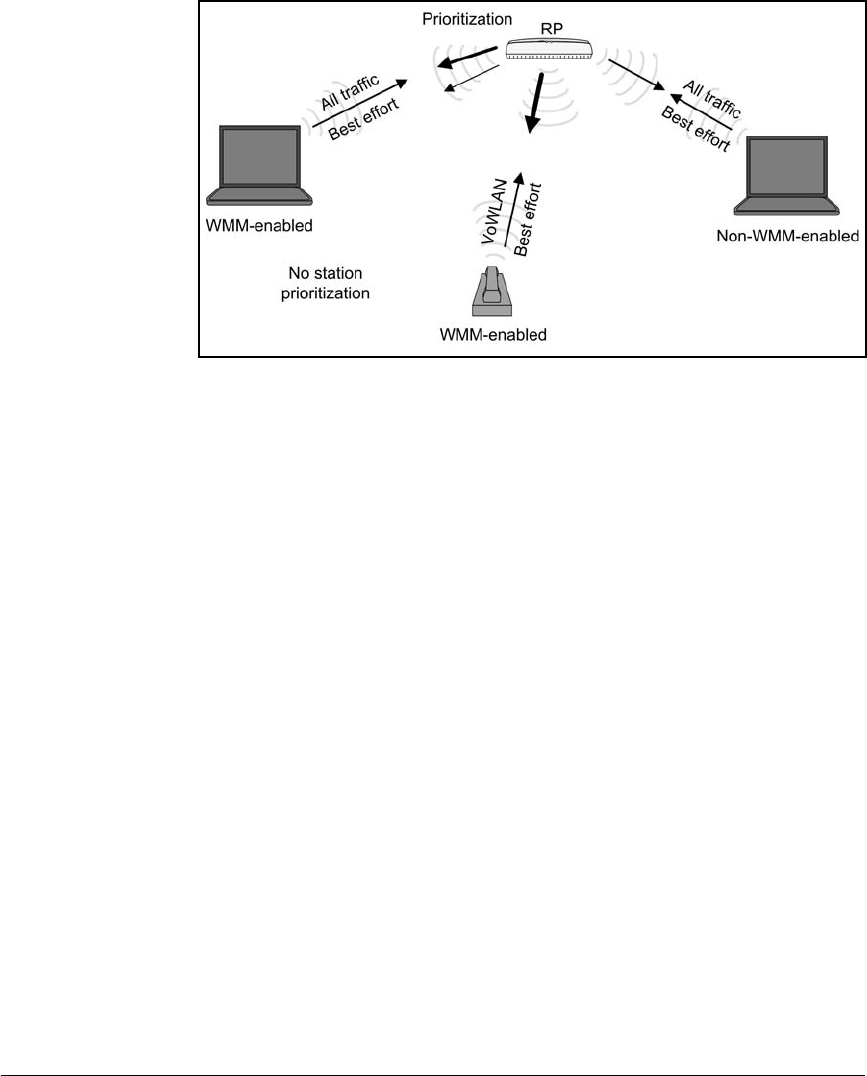

Figure 4-53. Using WMM to Prioritize Traffic Transmitted from RPs to Wireless

Stations

Priority Queuing on Traffic Transmitted from Wireless Stations to

RPs. Only when you enable WMM on a WLAN, WMM-enabled stations also

implement priority queuing on traffic they transmit.

RPs broadcast station WMM parameters throughout the WLAN. WMM-

enabled stations queue traffic according to 802.1p or DSCP value, using the

WMM parameters to determine how to handle traffic in each queue. (Non-

WMM stations continue to handle all traffic normally.) Figure 4-54 illustrates

the affect of WMM on wireless station to RP traffic.
