4-96

Wireless Local Area Networks (WLANs)

Traffic Management (QoS)

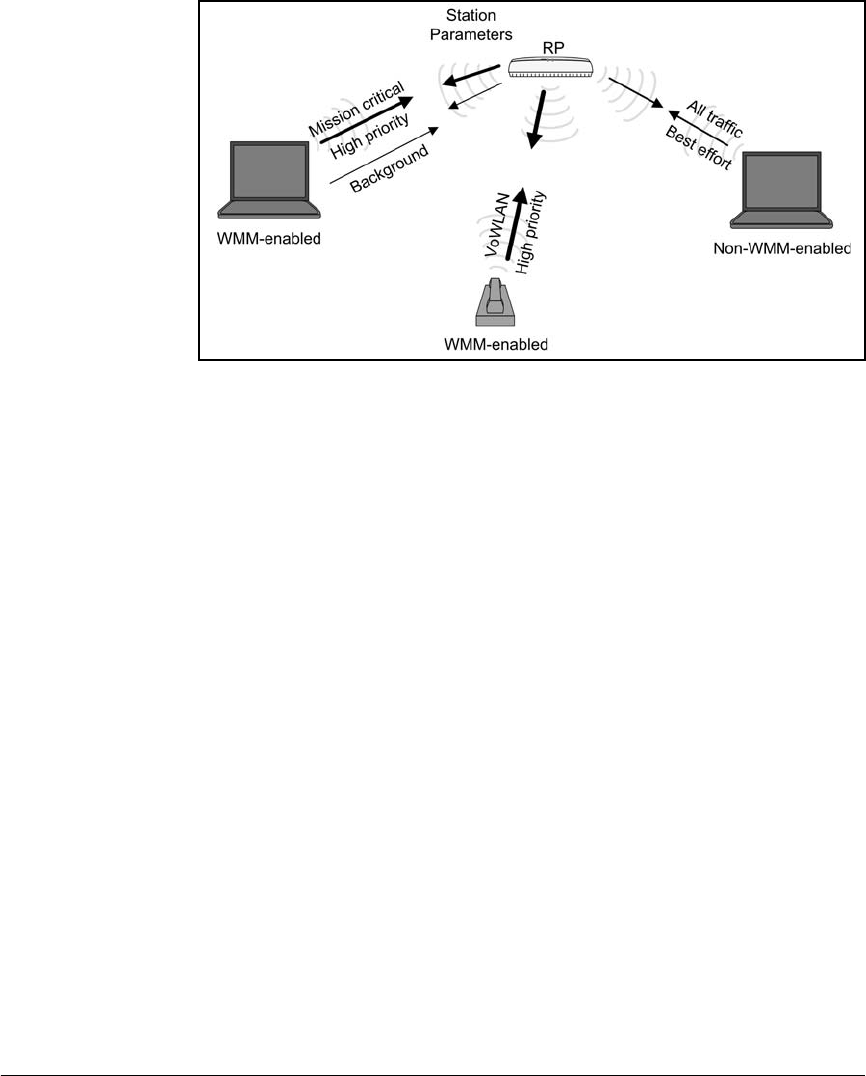

Figure 4-54. Using WMM to Prioritize Traffic Transmitted From Wireless Stations

to RPs

Note that the station WMM parameters can differ from the RP WMM

parameters.

Enabling WMM on a WLAN

Enabling WMM on a WLAN, enables the following:

■ RP radios use QoS marks (802.1p, by default) to queue traffic destined to

stations in this WLAN

Radios grant better QoS to high priority queues by using different

parameters to transmit traffic in those queues.

■ WMM-enabled stations in the WLAN use QoS marks to queue traffic

destined to their RPs

Adopted RP radios broadcast WMM parameters for the four ACs. Wireless

stations that are WMM-enabled queue and transmit traffic accordingly.

Non-WMM-enabled stations continue to use standard settings for all

traffic, which match those for the Best Effort AC (queue 1).

To enable WMM prioritization, complete these steps:

1. Access the Edit screen for the WLAN that includes voice devices:

a. Select Network Setup > WLAN Setup and click the Configuration tab.

b. Select the WLAN and click the Edit button. The Edit screen is displayed.
