4-100

Wireless Local Area Networks (WLANs)

Traffic Management (QoS)

4. To restrict the number of stations allowed to use the settings for this

queue, check the Admission Control box and enter a value from 1 to 255.

This option is only available for the Voice and Video ACs.

5. Click the OK button.

Viewing Station WMM Parameters

From the Network Setup > WLAN Setup > WMM, you can also view the station

WMM parameters, which determine how WMM-enabled stations in a WMM-

enabled WLAN handle traffic placed in various ACs.

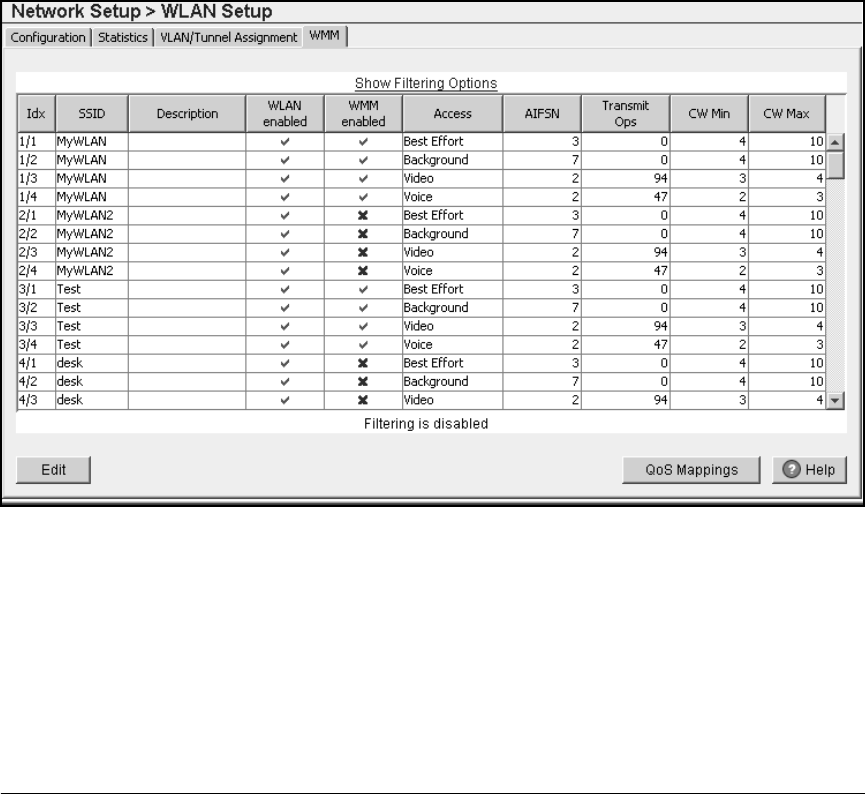

Figure 4-58. Station WMM Settings

Figure 4-58 shows the default settings for WMM queues. As you can see, each

WLAN has its own four queues. This is because RPs broadcast one set of

station parameters to all stations in a WLAN. They can broadcast another

set of station parameters to all stations in another WLAN (if that WLAN

uses WMM).
