4-102

Wireless Local Area Networks (WLANs)

Traffic Management (QoS)

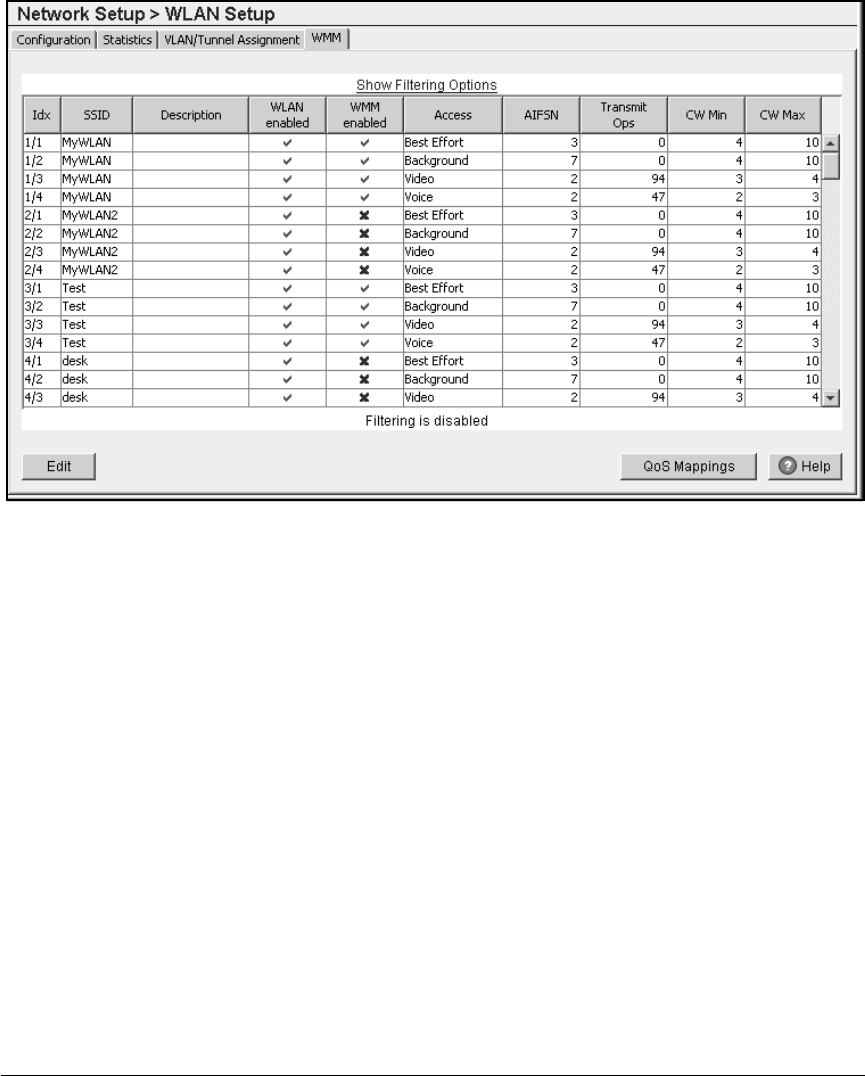

Figure 4-59. Station WMM Parameters

2. Select the queue for which you want to alter the settings, and then click

the Edit button. The Edit WMM screen is displayed.
