4-105

Wireless Local Area Networks (WLANs)

Traffic Management (QoS)

To customize the RP WMM parameters, complete these steps:

1. Choose whether you are configuring parameters for any newly adopted

radio or for a particular radio:

• To configure settings for any newly adopted radio, select Network

Setup > Radio Adoption Defaults.

• To configure settings for particular radios, select Network Setup >

Radio.

2. Click the WMM tab. On the screen that is displayed (see Figure 4-62),

queues are listed depending on the configuration type:

• For the radio adoption default configurations, queues are listed on

the screen by radio type and access category—for example, 802.11a

and Background.

• If you are configuring WMM settings for particular radios, queues are

indexed according to radio number and queue number. For example,

in Figure 4-62, the Voice queue for radio 1 would be indexed 1/4.

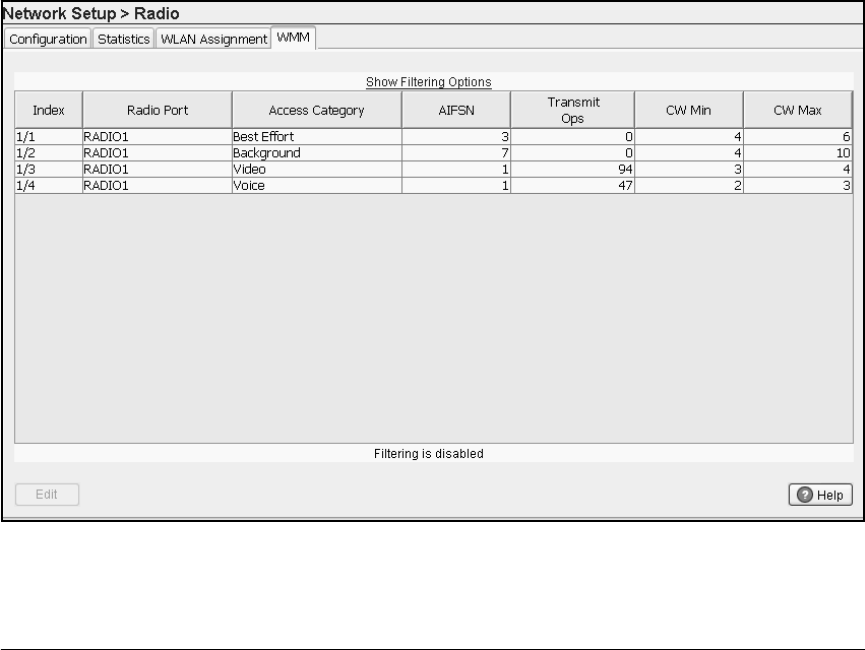

Figure 4-61. Network Setup > Radio > WMM Screen
