4-108

Wireless Local Area Networks (WLANs)

Traffic Management (QoS)

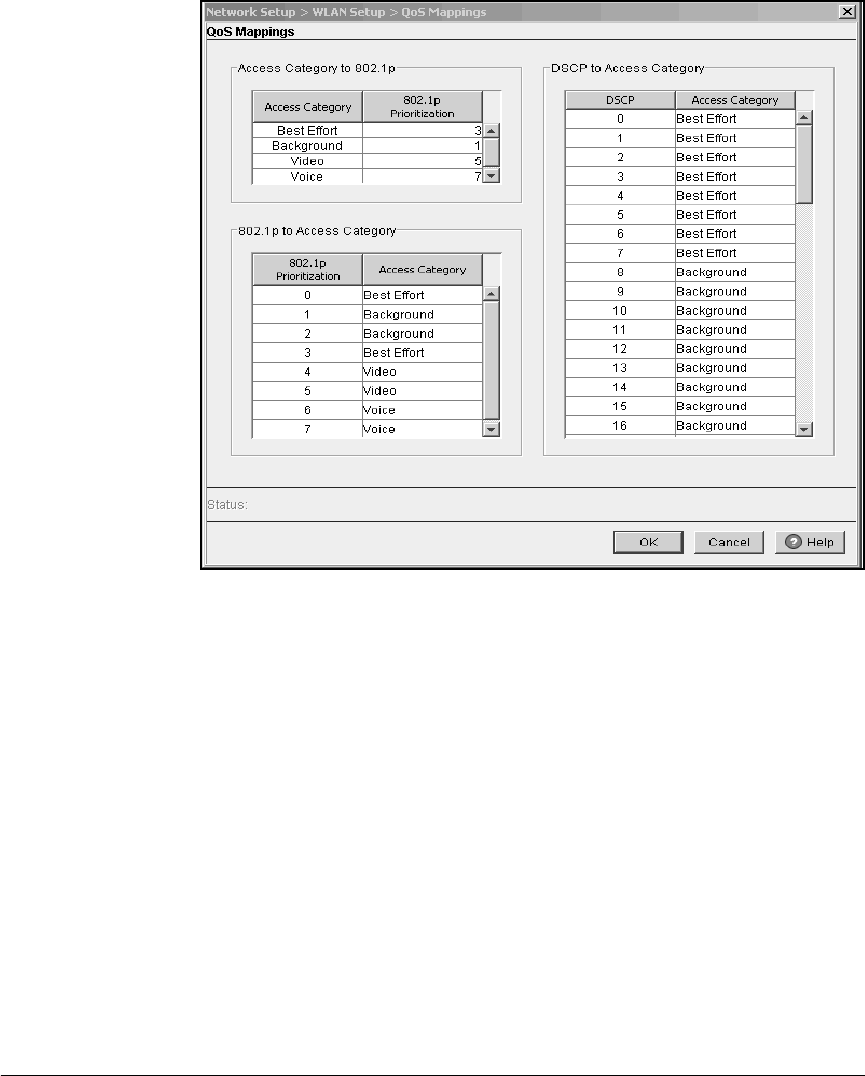

Figure 4-63. Customizing QoS Mappings

3. Use the Access Category to 802.1p section to configure the Wireless Edge

Services xl Module, to mark incoming wireless traffic with a QoS value

for priority handling in the wired network.

Click a field in the 802.1p Prioritization column. Then enter a value between

0 and 7. The module marks traffic that arrives in this AC with this 802.1p

value.

4. If you are using 802.1p to prioritize traffic in at least one WLAN, configure

the QoS mappings in the 802.1p to Access Category section.

To select the AC to which a particular 802.1p value maps, click the Access

Category column in the row for that value. Then choose Best Effort, Back-

ground, Video, or Voice from the drop-down menu.
