4-110

Wireless Local Area Networks (WLANs)

Traffic Management (QoS)

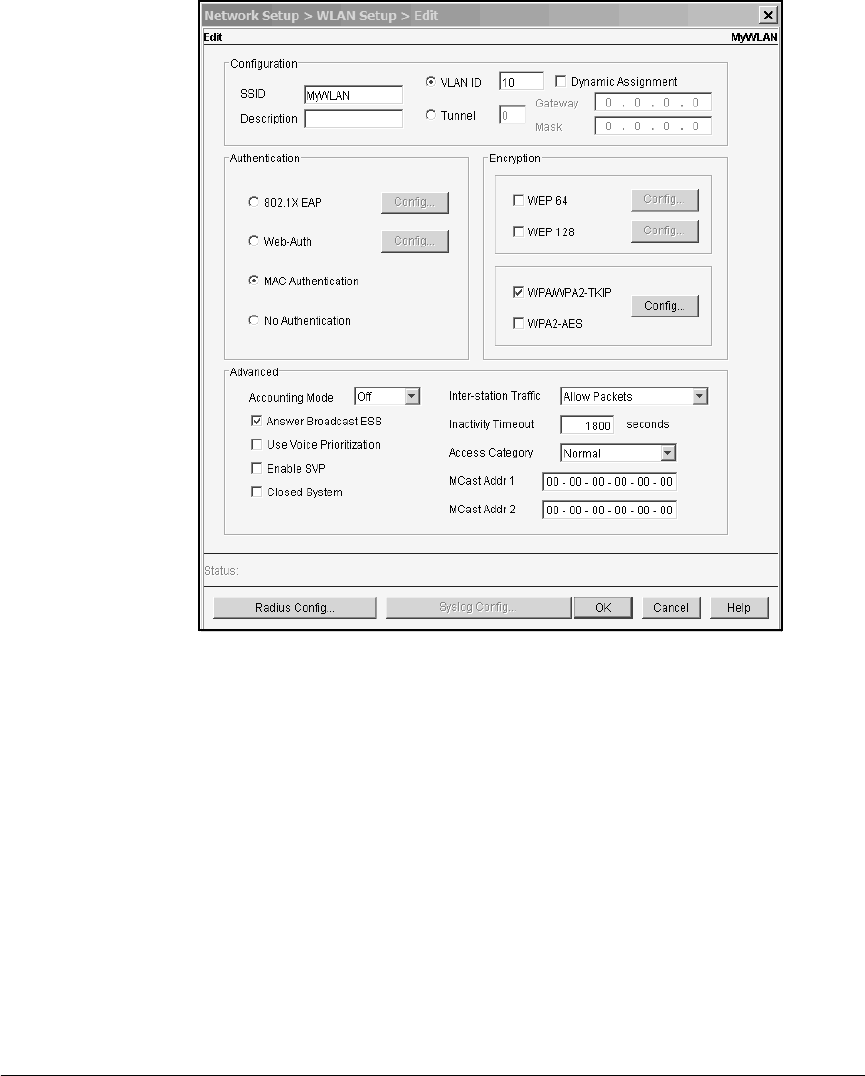

Figure 4-64. Setting a WLAN’s AC

2. Choose the name of an AC from the Access Category drop-down menu in

the Advanced section.

By default, RPs handle traffic as follows, from traffic that receives the

highest priority to traffic that receives the lowest:

•Voice

•Video

•Normal

•Low
