4-112

Wireless Local Area Networks (WLANs)

Traffic Management (QoS)

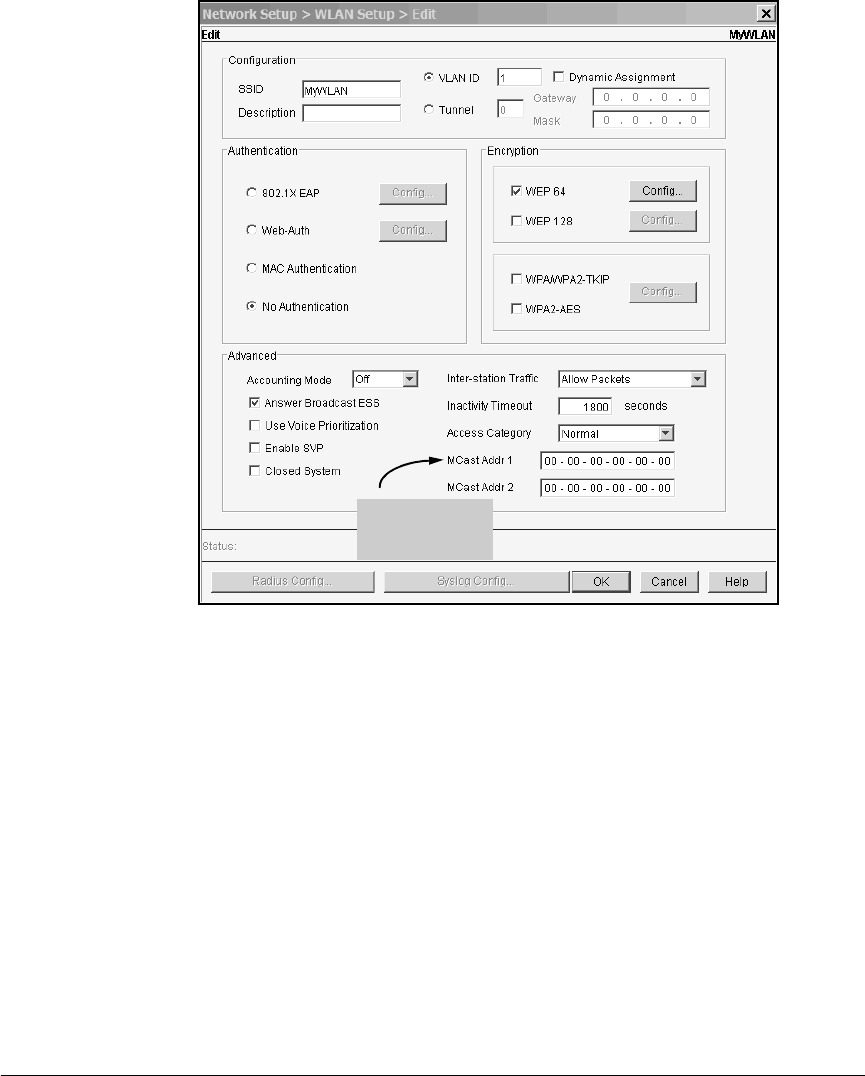

Figure 4-65. Setting the Multicast Address

3. Under Advanced, in the MCast Addr 1 field, enter the address for voice

traffic.

4. If you want, enter a second address in the MCast Addr 2 field.

5. Click the OK button.

Set the multicast

address for

voice traffic
