5-3

Web Authentication for Mobile Users

Overview

The Web-Auth Process

To provide limited network access to mobile users through Web-Auth, you

set up a Dynamic Host Configuration Protocol (DHCP) server and instruct

the users to configure their stations to receive a dynamic IP address from this

server. (This DHCP server can be an external server or the Wireless Edge

Services xl Module’s internal server.) When a mobile user tries to associate

with a wireless LAN (WLAN) that is configured for Web-Auth, the user’s

station requests an IP address from the DHCP server. (See Figure 5-1.)

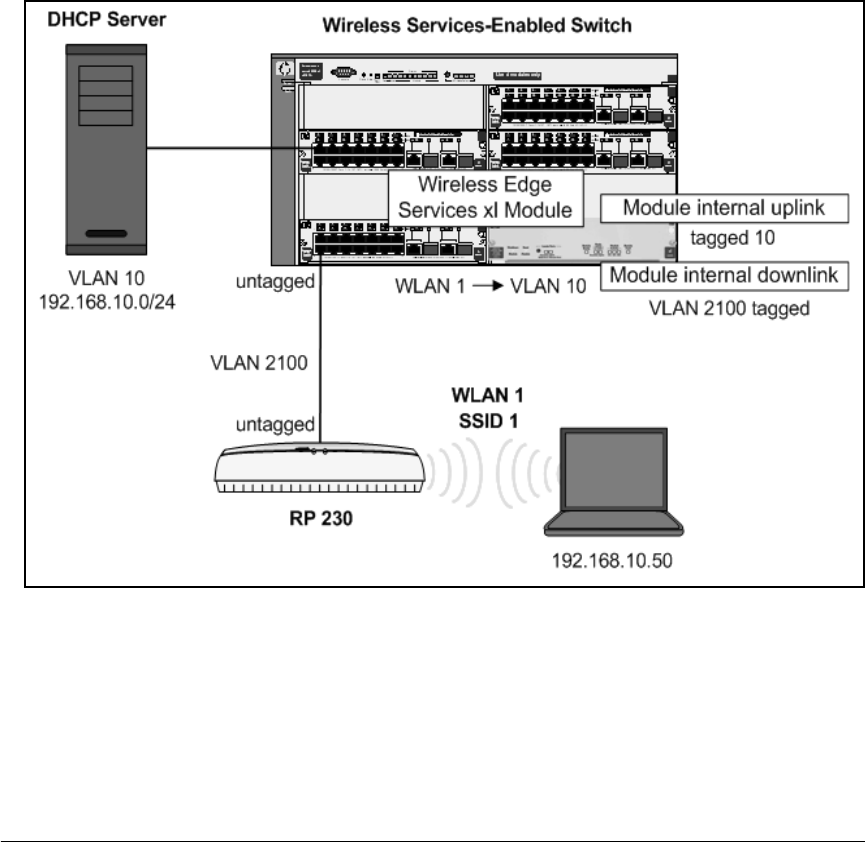

Figure 5-1. The Station Receives an IP Address from a DHCP Server
