5-6

Web Authentication for Mobile Users

Overview

Web Pages for the Login Process

To enable authentication through the Web, the Wireless Edge Services xl Module

provides three default Web pages that guide users through the login process:

■ Login page—When users associate with a WLAN that is configured for

Web-Auth and try to access a valid Web site, their Web browser is redi-

rected to the login page, and they are prompted to enter a username and

password. (See Figure 5-3.)

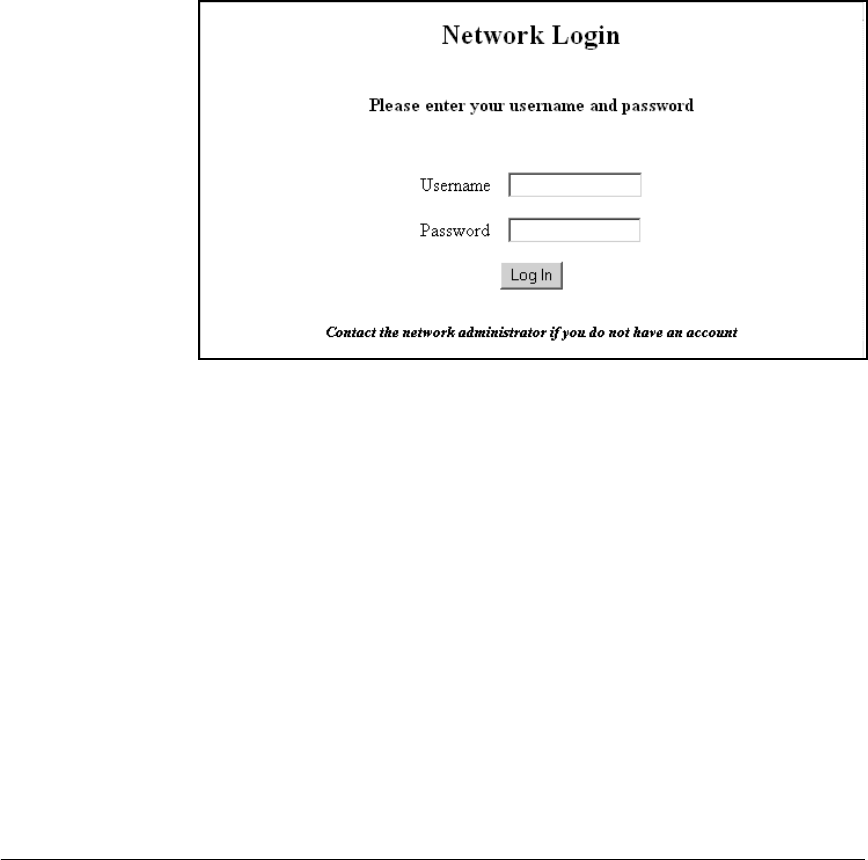

Figure 5-3. Default Login Page

■ Welcome page—If users enter a valid username and password, a wel-

come page is displayed, reporting that the login attempt was successful.

The welcome page also provides a link that users can click to disconnect

from the network services that your company provides through the

Wireless Edge Services xl Module. (See Figure 5-4.)
