5-7

Web Authentication for Mobile Users

Overview

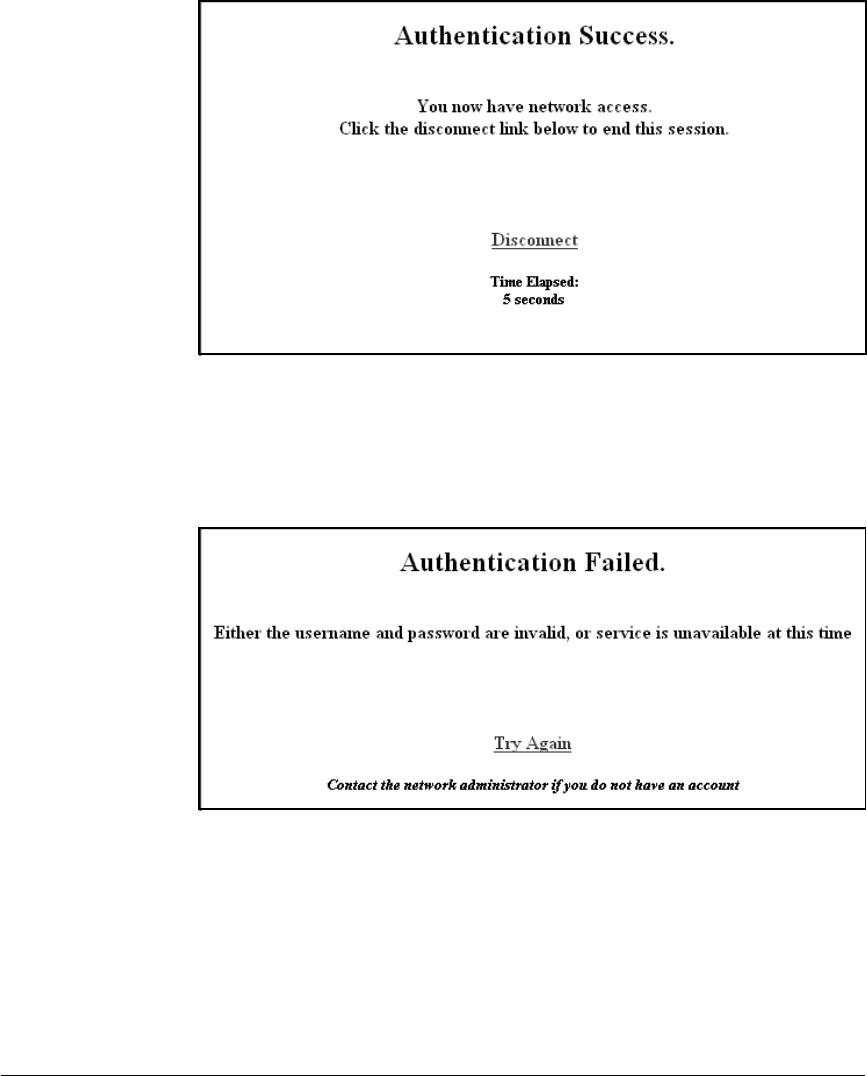

Figure 5-4. Default Welcome Page

■ Failed page—If users do not enter a valid username and password on

the login page, the failed page is displayed. This page includes a link back

to the Login screen. (See Figure 5-5.)

Figure 5-5. Default Failed Page

You can use the default Web pages as they are, or you can modify them for

your environment. You can change the text that displays and add your orga-

nization’s logo.
