5-11

Web Authentication for Mobile Users

Configuring Web-Auth

Configuring Basic Options and Accessing the Web-Auth

Screen

To configure a WLAN to use Web-Auth, complete these steps:

1. Select Network Setup > WLAN Setup > Configuration.

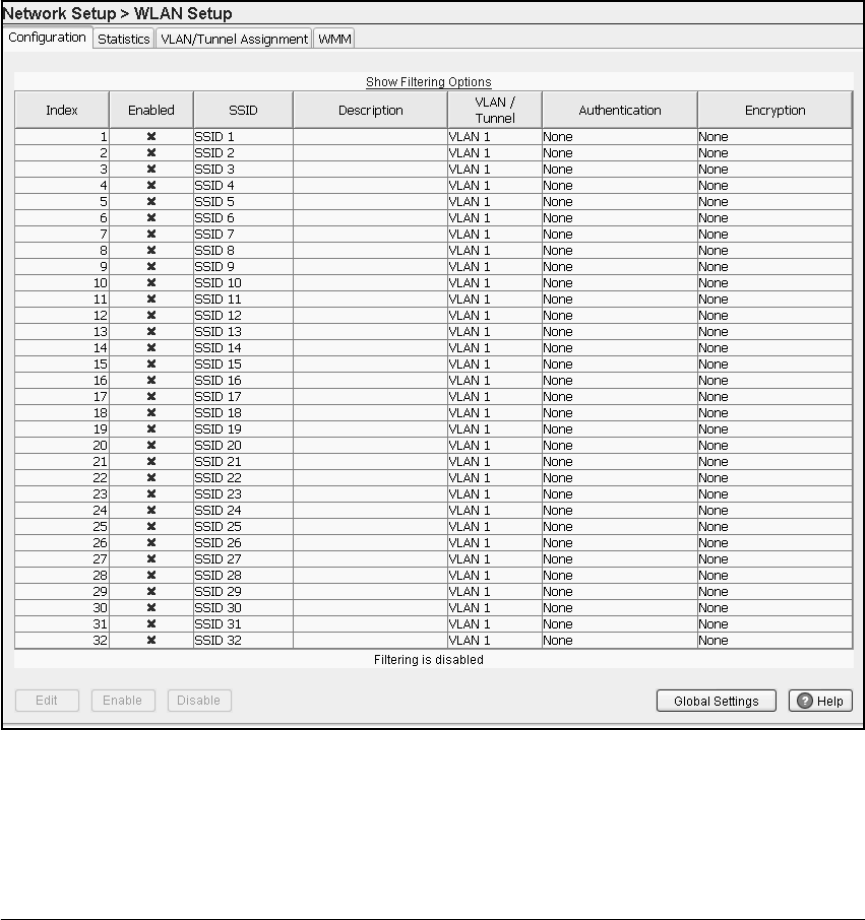

Figure 5-6. Network Setup > WLAN Setup > Configuration Screen
