5-12

Web Authentication for Mobile Users

Configuring Web-Auth

2. Select the WLAN that you want to use Web-Auth, and then click the Edit

button. The Edit screen is displayed.

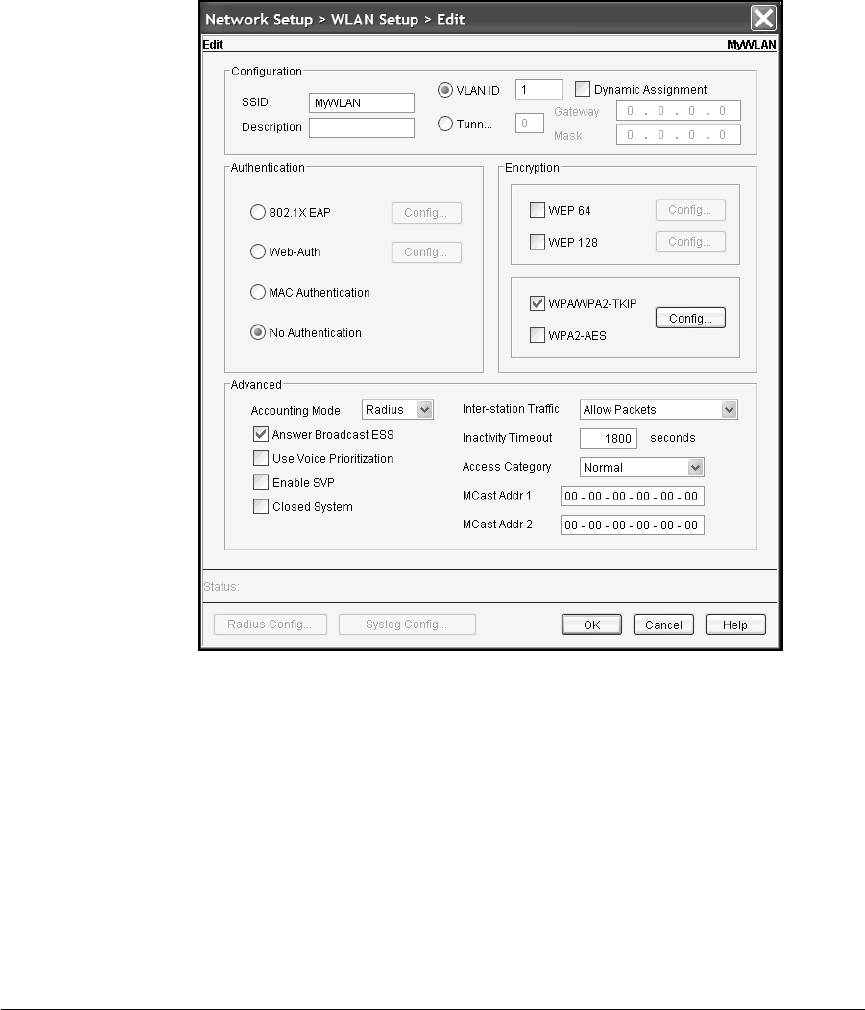

Figure 5-7. WLAN Edit Screen

3. Under Configuration, enter an SSID for this WLAN in the SSID field.

4. In the Description field, you can enter information that will help you

identify this WLAN. This field is optional.

5. By default, the Wireless Edge Services xl Module places all wireless traffic

in VLAN 1. If you want to assign this WLAN to a different VLAN, enter the

number in the VLAN ID field.

Make sure that either your module or another infrastructure device is

configured to assign wireless stations DHCP addresses in this VLAN.
