5-13

Web Authentication for Mobile Users

Configuring Web-Auth

Note For more information about configuring SSIDs, VLANs, and advanced config-

uration options, such as interstation blocking and voice prioritization, see

Chapter 4: Wireless Local Area Networks (WLANs).

6. Under Authentication, select Web-Auth.

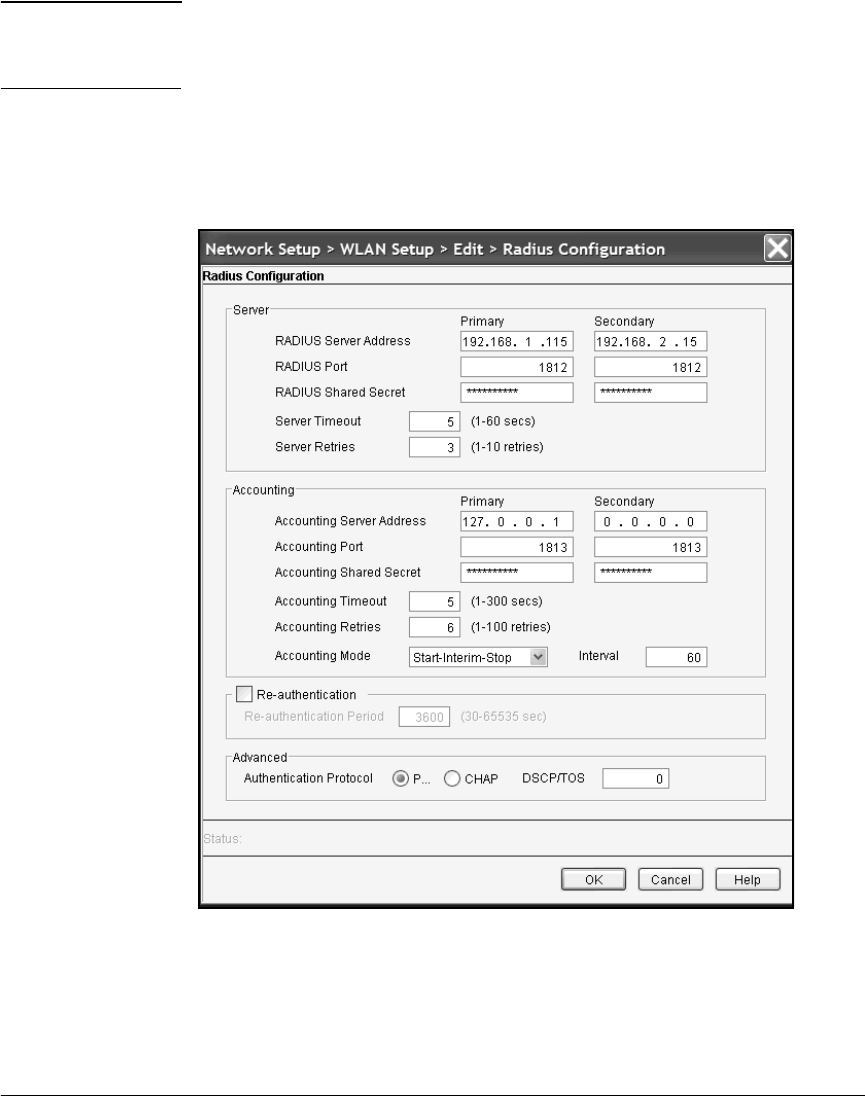

7. Click the Radius Config button at the bottom of the screen. The Radius

Configuration screen is displayed.

Figure 5-8. Radius Configuration Screen
