5-15

Web Authentication for Mobile Users

Configuring Web-Auth

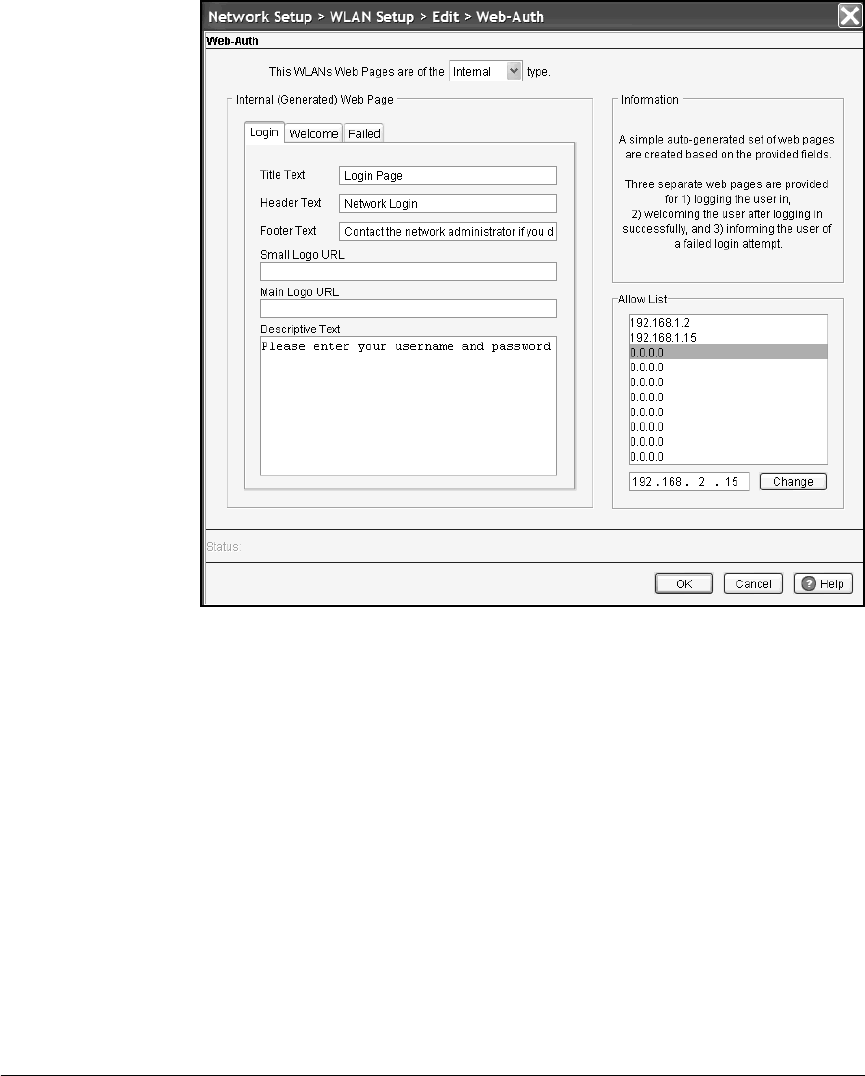

Figure 5-9. Configuring the Login Page

15. Select the location for the Web-Auth Web pages from the drop-down menu

at the top of the screen.

You can select one of three options for these Web pages:

• Internal—three default pages stored on the Wireless Edge Services xl

Module

• External—three pages stored on an external Web server

• Advanced—pages that you have loaded onto the Wireless Edge Ser-

vices xl Module’s flash memory

16. Configure the Web pages as described in the following sections:

• “Configuring Internal Web-Auth Pages” on page 5-16

• “Configuring Web-Auth to an External Web Server” on page 5-24

• “Loading Custom Pages onto the Wireless Edge Services xl Module’s

Internal Server (Advanced)” on page 5-26
