5-17

Web Authentication for Mobile Users

Configuring Web-Auth

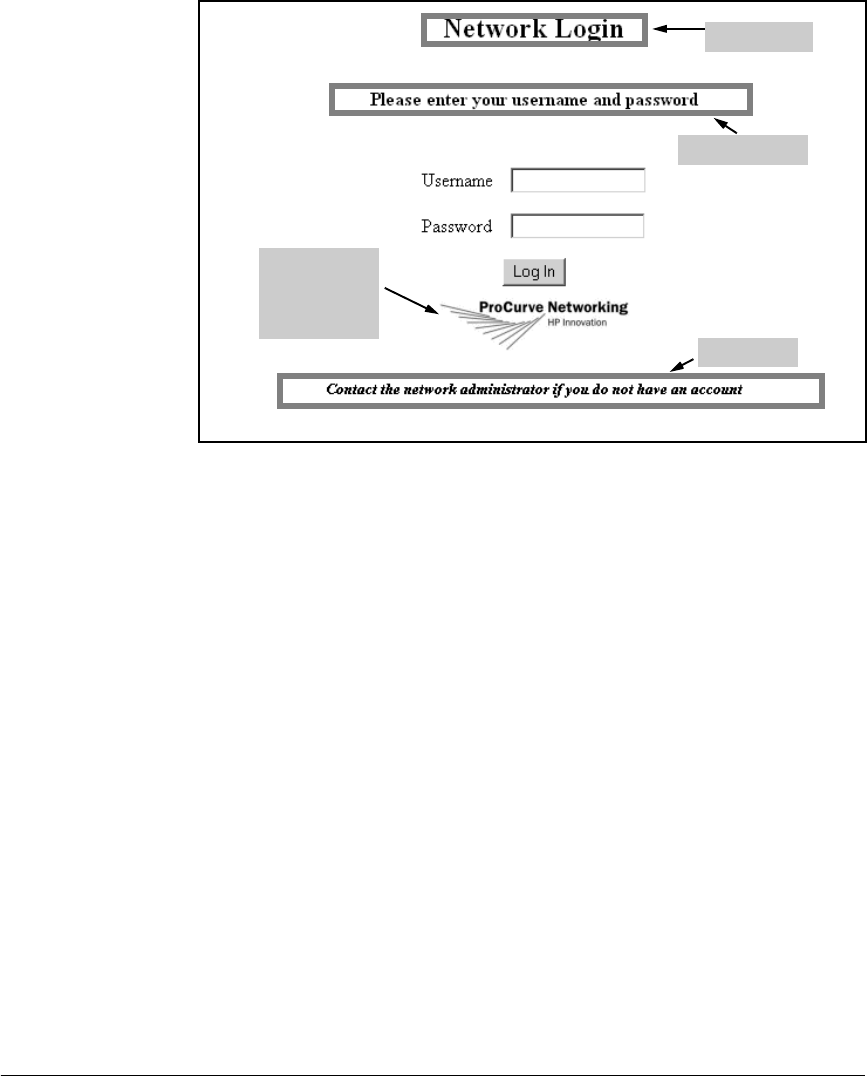

Figure 5-10. Displaying a Small Logo on the Web-Auth Login Page

e. In the Main Logo URL field, enter the name of a logo file to include a

logo at the top of the login page. (See Figure 5-11.) You must copy this

logo to the flash on the Wireless Edge Services xl Module. (For

instructions on how to copy the logo file to flash, see “Copying Logo

Files to the Module’s Flash” on page 5-32.)

f. In the Descriptive Text field, accept the default text shown on the

screen, or enter the text that you want to use. (See Figure 5-11.) For

example, you might enter:

Enter the username and password you were assigned. Remember that both

the username and password are case sensitive.

Header text

Descriptive text

Footer text

The small logo

displays

beneath the
