5-25

Web Authentication for Mobile Users

Configuring Web-Auth

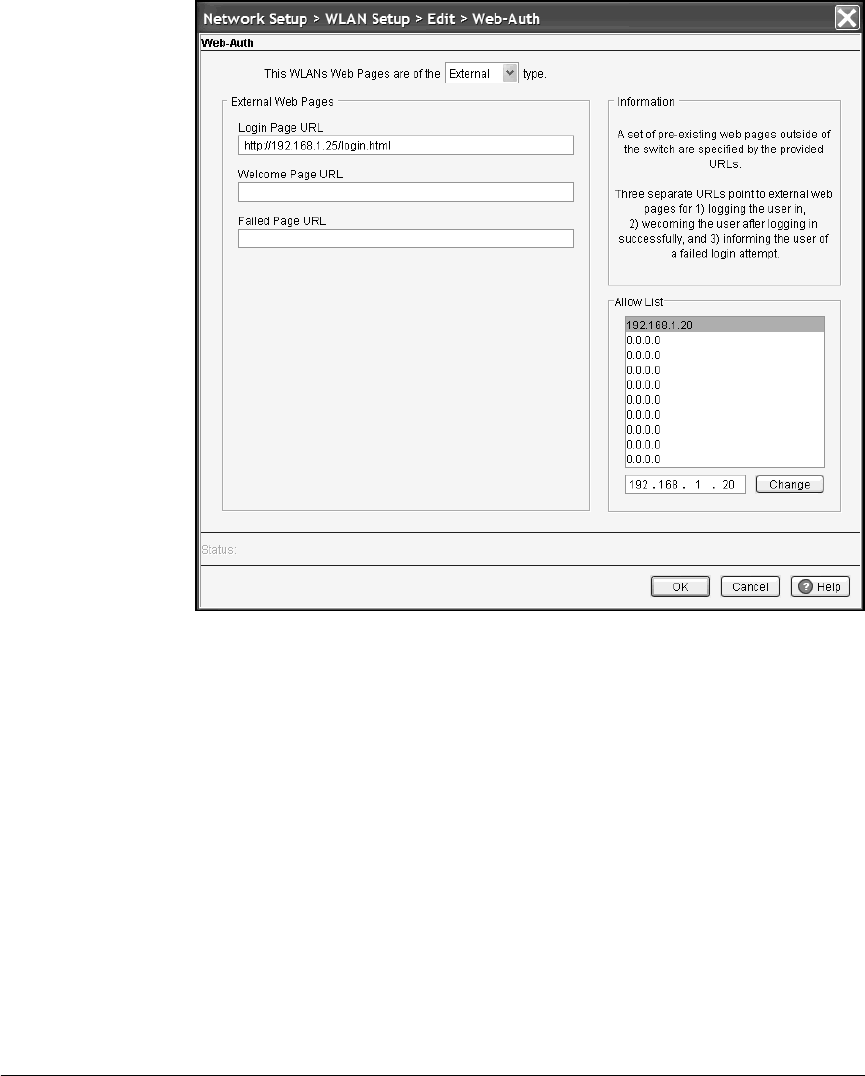

Figure 5-18. Specifying the URL for Web-Auth Pages That Are Stored on an

External Web Server

4. Under External Web Pages, specify the correct URL for each page.

a. In the Login Page URL field, specify the URL of the login page, which

users see when they try to access a Web site. For example, you might

enter a URL such as http://192.168.1.1/login.html or http://

www.yourcompany.com/login.html.

b. In the Welcome Page URL field, specify the URL of the welcome page

that users see if they log in successfully.

c. In the Failed Page URL, specify the URL of the page that users see if

they do not enter a valid username and password or if a RADIUS

server is unavailable.

5. Configure the Allow list as described in “Configuring the Allow List” on

page 5-28.
