5-27

Web Authentication for Mobile Users

Configuring Web-Auth

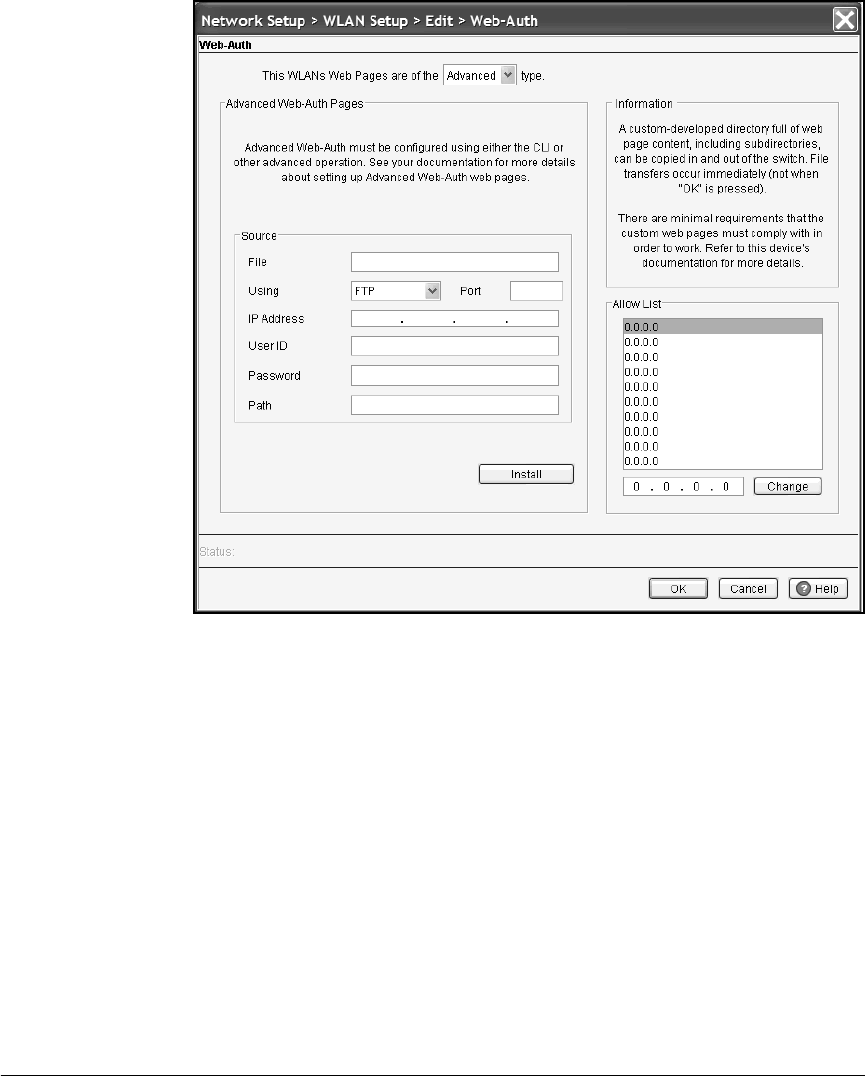

Figure 5-19. Configuring Advanced Web-Auth

5. In the File field, enter the name of the directory that contains the custom

Web pages.

6. Select the type of server that stores the directory (FTP or TFTP) from the

Using drop-down menu.

7. Enter the server’s IP address and port in the IP Address and Port fields.

The default port for FTP is 21, and the default port for TFTP is 69.

8. If you are using FTP, enter your username and password in the User ID and

Password fields.
