5-30

Web Authentication for Mobile Users

Configuring Web-Auth

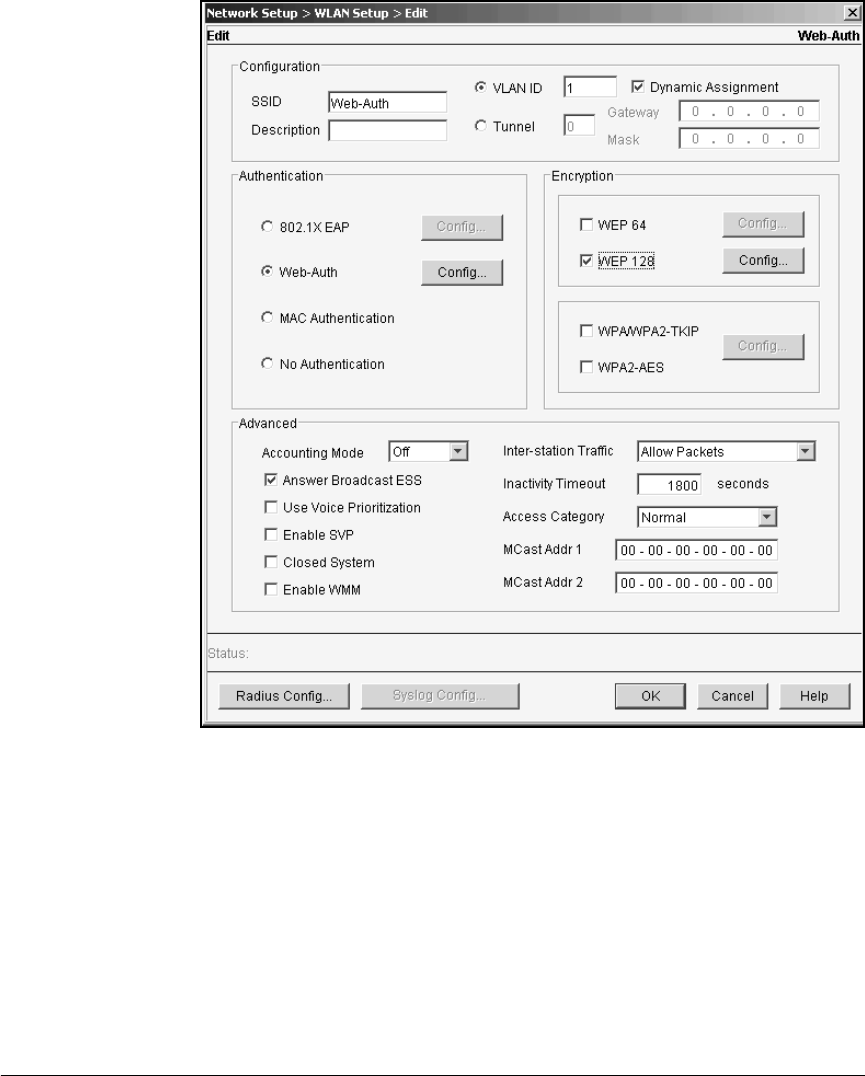

Figure 5-20. Configuring Encryption for a WLAN that Enforces Web-Auth

2. In the Encryption section, check the box for your selection.

3. If you have selected a WEP encryption type, click its Config button and

specify the WEP keys.

You can enter up to four keys. The currently selected key acts as the

password. See “Configuring Static WEP Encryption (No Authentication)”

on page 4-49 of Chapter 4: Wireless Local Area Networks (WLANs) for

more information on configuration options.

4. If you have selected a WPA encryption type, click its Config button and

specify the preshared key.
