5-31

Web Authentication for Mobile Users

Configuring Web-Auth

See “Wireless Local Area Networks (WLANs)” on page 4-1 of Chapter 4:

Wireless Local Area Networks (WLANs) for more information on config-

uring the preshared key.

5. Click the OK button to close the WLAN Edit screen and save your config-

uration changes to the running-config. You are returned to the Network

Setup > WLAN Setup > Configuration screen. (See Figure 5-21.)

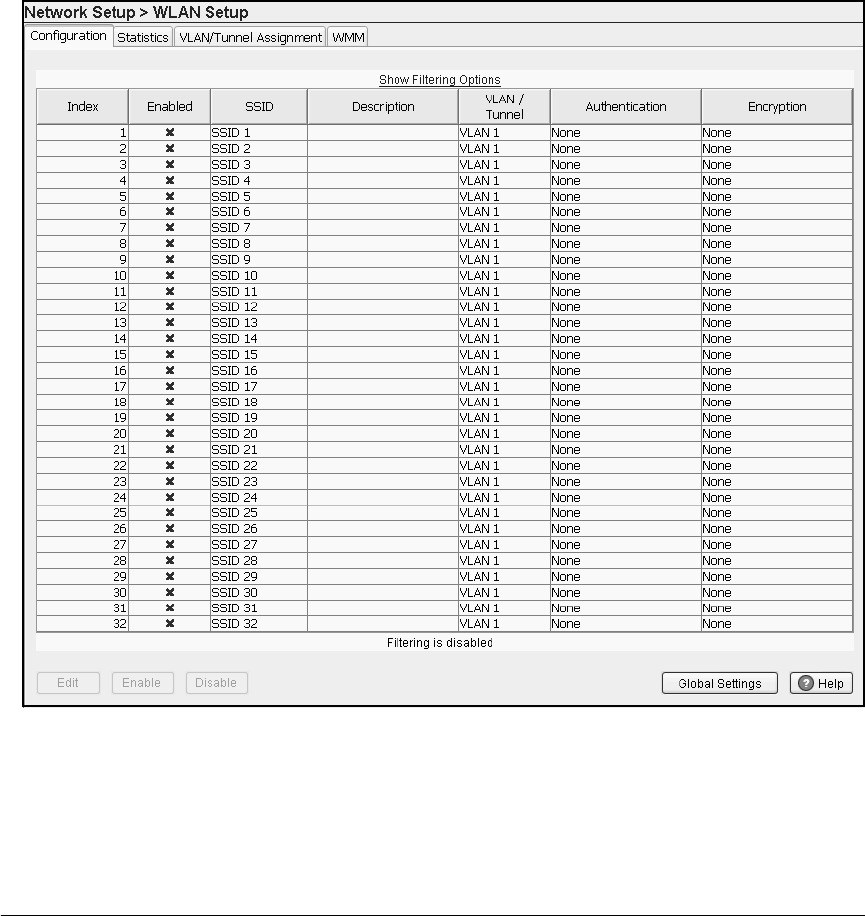

Figure 5-21. Network Setup > WLAN Setup > Configuration Screen

6. Activate the WLAN that you have configured by selecting the WLAN and

clicking the Enable button.

7. Click the Save link at the top of the Web browser interface to save the

changes to the startup-config.
