5-34

Web Authentication for Mobile Users

Copying Logo Files to the Module’s Flash

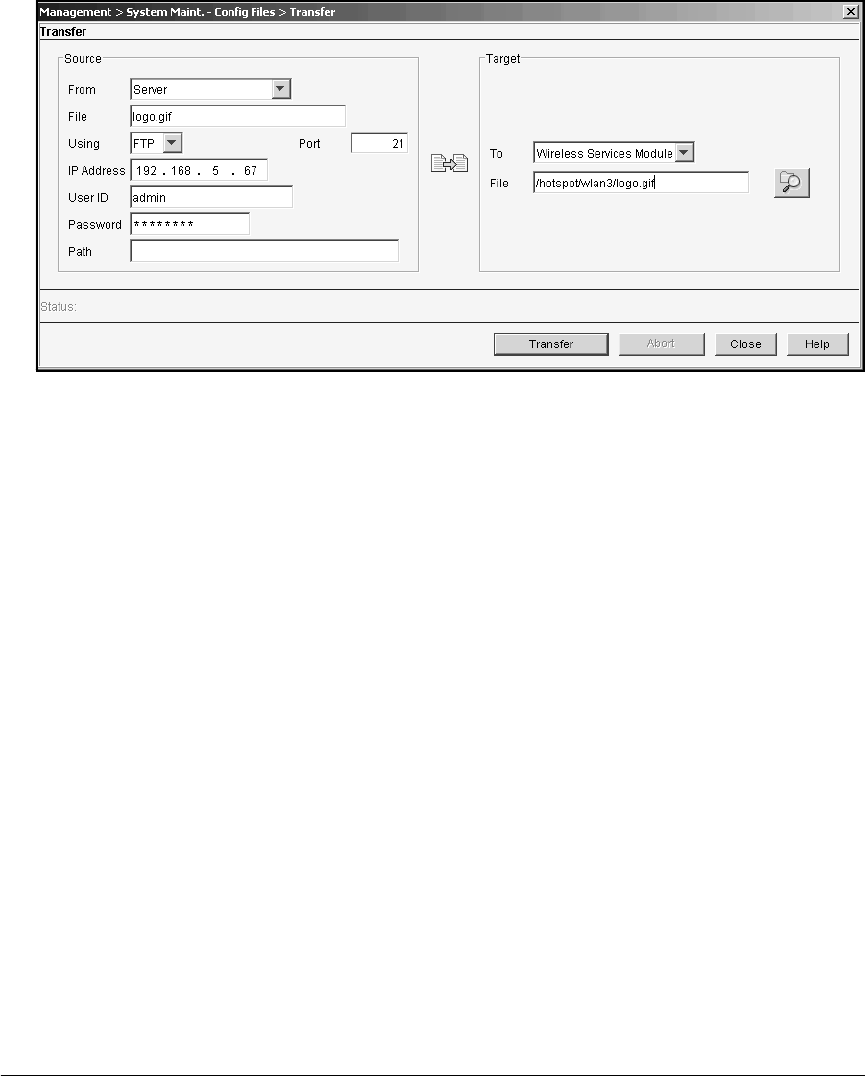

Figure 5-23. Management > System Maint.—Config Files > Transfer Screen

5. Click the Transfer button. In the Status area at the bottom of the screen, a

message is displayed, reporting whether the transfer was successful.
