6-4

IP Services—IP Settings, DHCP, and DNS

IP Settings

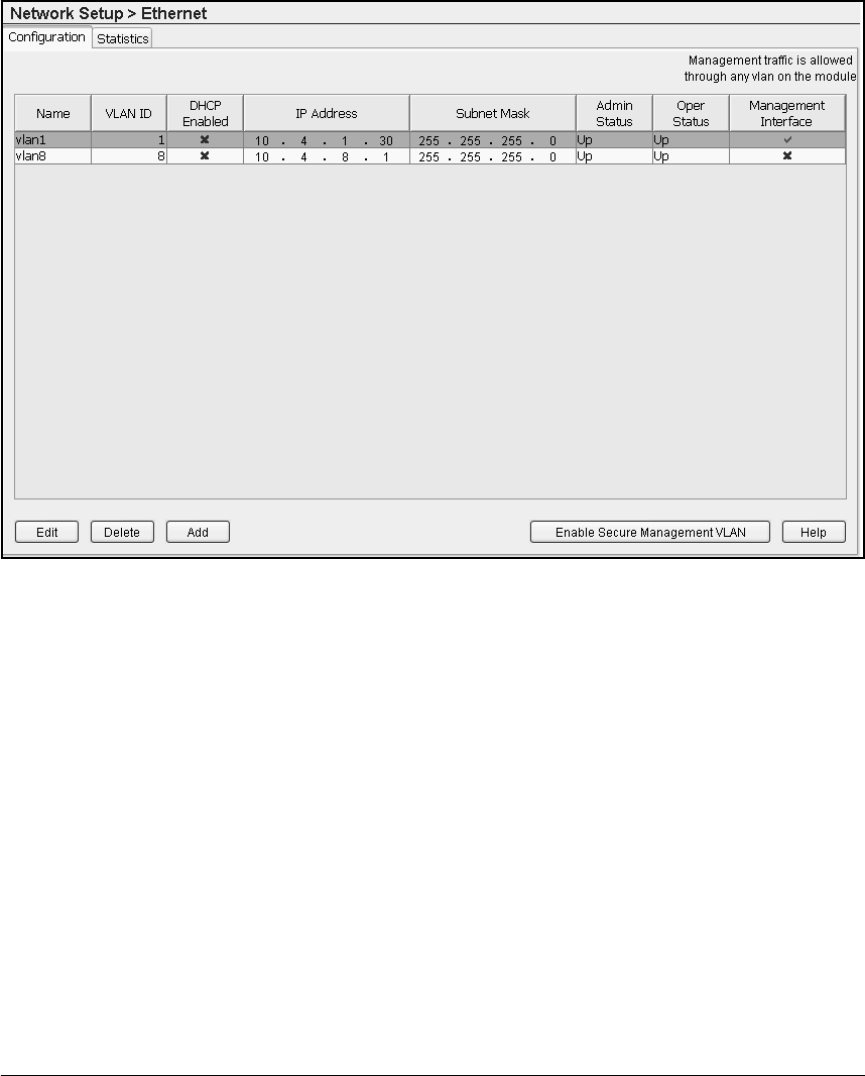

Figure 6-1. Network Setup > Ethernet > Configuration Screen

The following information is listed for each VLAN:

■ Name

■ VLAN ID

■ DHCP Enabled

This column has a green check mark if the DHCP client is enabled on this

VLAN (so that the VLAN receives a dynamic address).

■ IP Address

■ Subnet Mask

■ Admin Status

This column lists the status (either up or down) of the internal uplink port.

■ Status

This column reports whether or not the VLAN was created successfully.

■ Management Interface
