6-7

IP Services—IP Settings, DHCP, and DNS

IP Settings

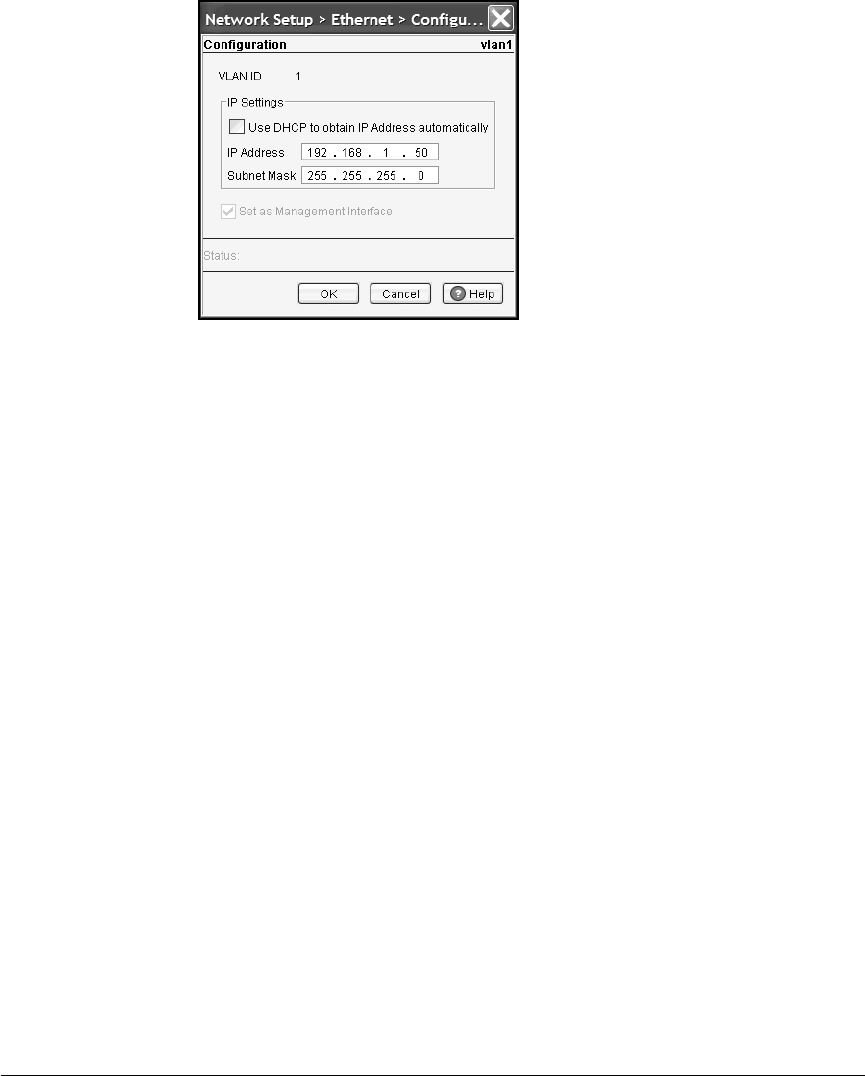

Figure 6-3. Configuration Screen for the vlan1 Interface

3. Change the settings as needed and then click the OK button.

4. Click the Save link at the top of the Web browser interface to save the

changes to the startup-config.

Viewing Statistics for VLANs That Are Assigned IP

Addresses

The Wireless Edge Services xl Module tracks statistics for VLANs that are

assigned IP addresses. To view these statistics, select Network Setup > Ethernet

and click the Statistics tab.
