6-10

IP Services—IP Settings, DHCP, and DNS

IP Settings

Viewing Graphs for VLANs That Are Assigned IP

Addresses

The Wireless Edge Services xl Module can create graphs of statistics for a

VLAN that has been assigned an IP address. These graphs display how the

statistics change over time.

To view a graph, follow these steps:

1. Select Network Setup > Ethernet > Statistics.

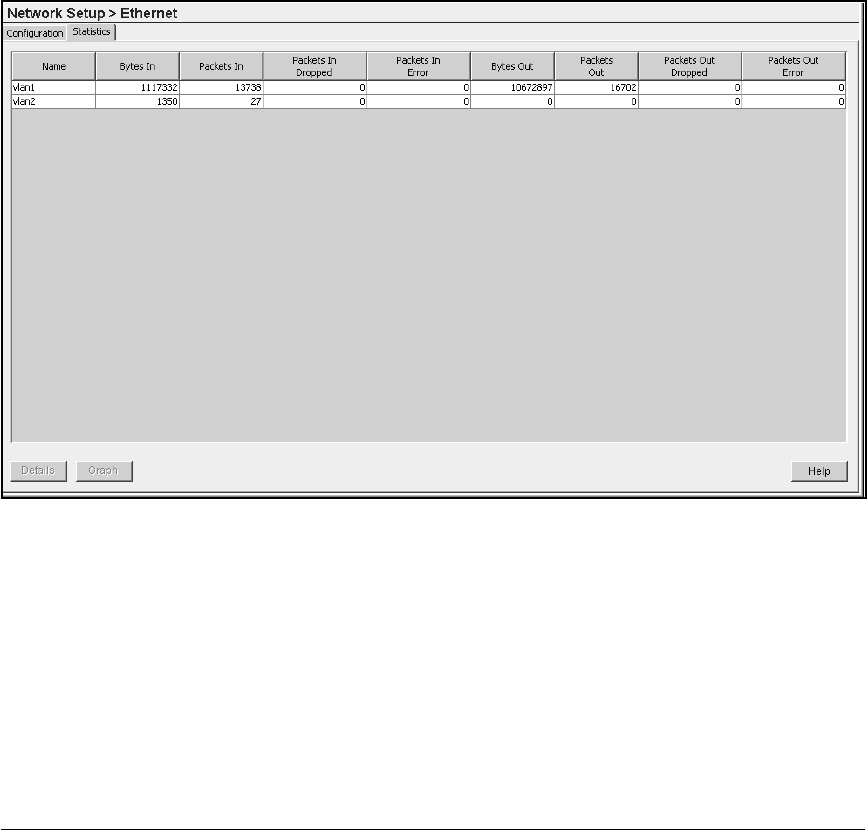

Figure 6-6. Network Setup > Ethernet > Statistics

2. Select a VLAN from the list.

3. Click the Graph button.
