IP Services—IP Settings, DHCP, and DNS

IP Settings

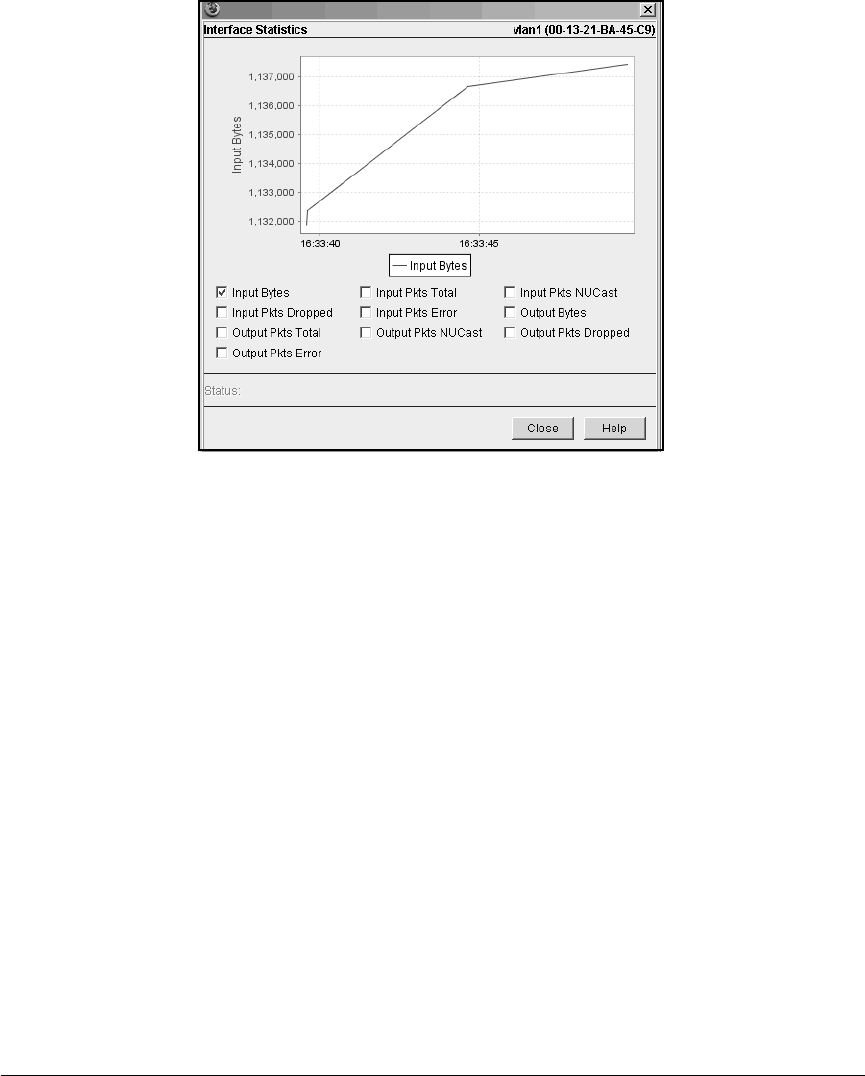

Figure 6-7. Interface Statistics Graph

To generate a graph, you must select the statistic that you want to track.

Initially, the graph shows input bytes. You can choose any of the statistics

displayed in the

Details

screen (refer to “Viewing Statistics for VLANs That Are

Assigned IP Addresses” on page 6-7 for more information about a statistic).

Select the appropriate box for the statistic you want to view.
