IP Services—IP Settings, DHCP, and DNS
IP Routing

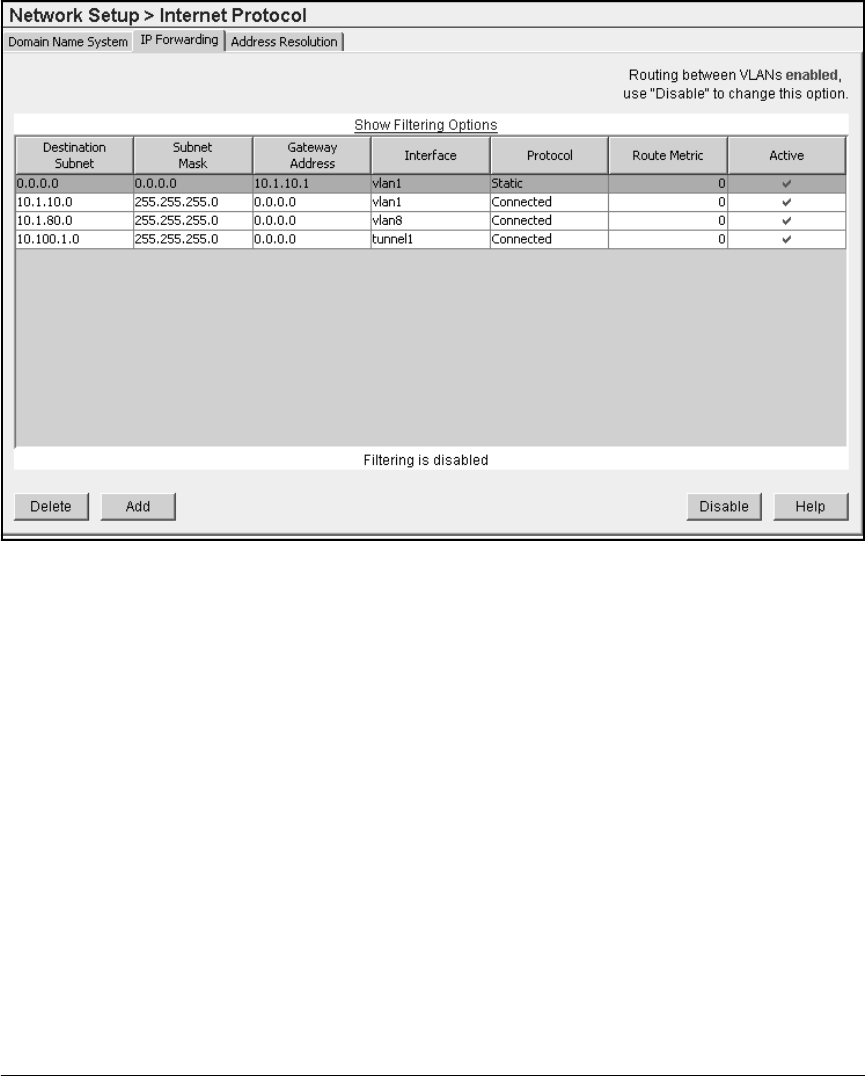

Figure 6-8. Network Setup > Internet Protocol > IP Forwarding Screen
If you assign an IP address to any other VLAN (as described in “IP Settings”
on page 6-3), the Wireless Edge Services xl Module recognizes the subnetwork
attached to that VLAN and lists it as a directly connected route.
To view the module’s route table, select Network Setup > Internet Protocol and
click the IP Forwarding tab. (See Figure 6-8.) The following fields are provided
for each route:
■ Destination Subnet—lists the IP address of the destination subnetwork.
■ Subnet Mask—lists the subnet mask for the destination subnetwork.
■ Gateway Address—lists the gateway for reaching the destination subnet-
work.
■ Interface—lists the VLAN through which traffic is forwarded.
