6-17

IP Services—IP Settings, DHCP, and DNS

IP Routing

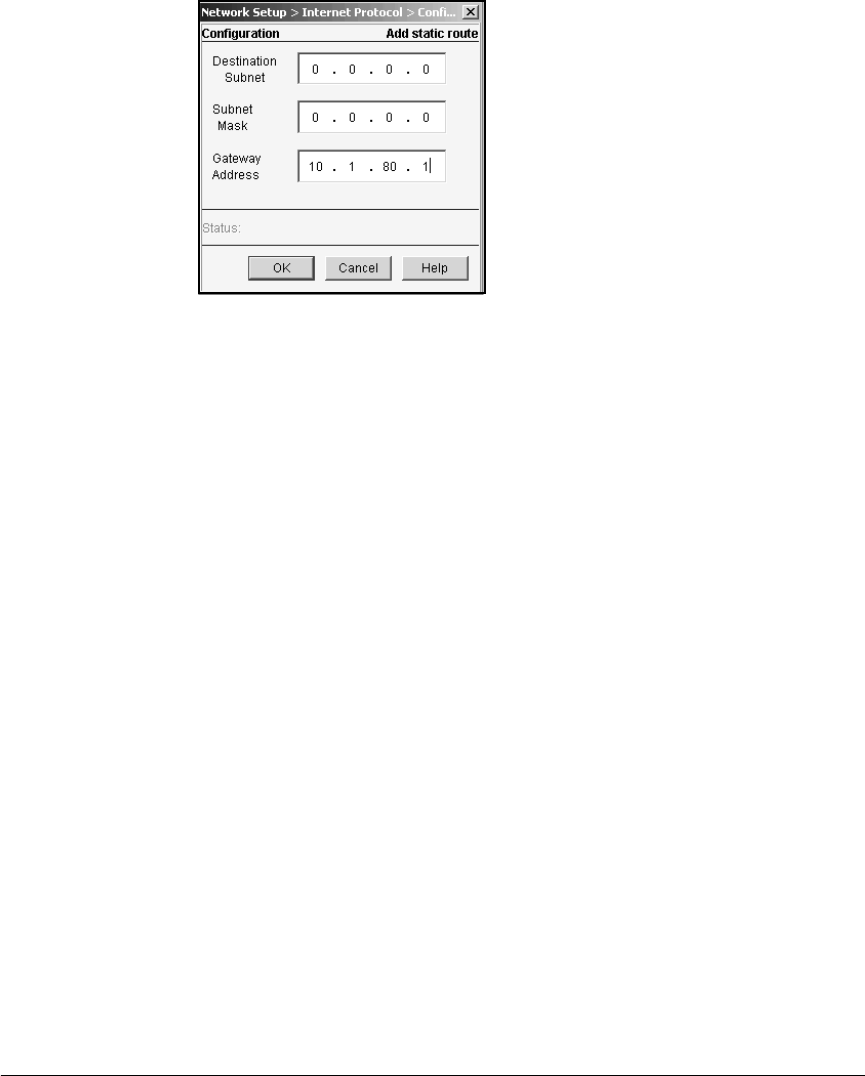

Figure 6-12. Add Static Route Screen

7. Click the OK button to apply the change to the running-config.

8. Click the Save link at the top of the Web browser interface to save the

changes to the startup-config.

Address Resolution Table

The Wireless Edge Services xl Module maintains an address resolution table,

which displays the media access control (MAC) addresses associated with

particular IP addresses. The module uses this table to prepare IP packets for

forwarding to the correct MAC address.

In addition, by default, the Wireless Edge Services xl Module provides proxy

ARP for its wireless stations. That is, the module responds to ARP requests

for the IP addresses listed in this table.

To view this table, select Network Setup > Internet Protocol and click the Address

Resolution tab.
