6-18

IP Services—IP Settings, DHCP, and DNS

IP Routing

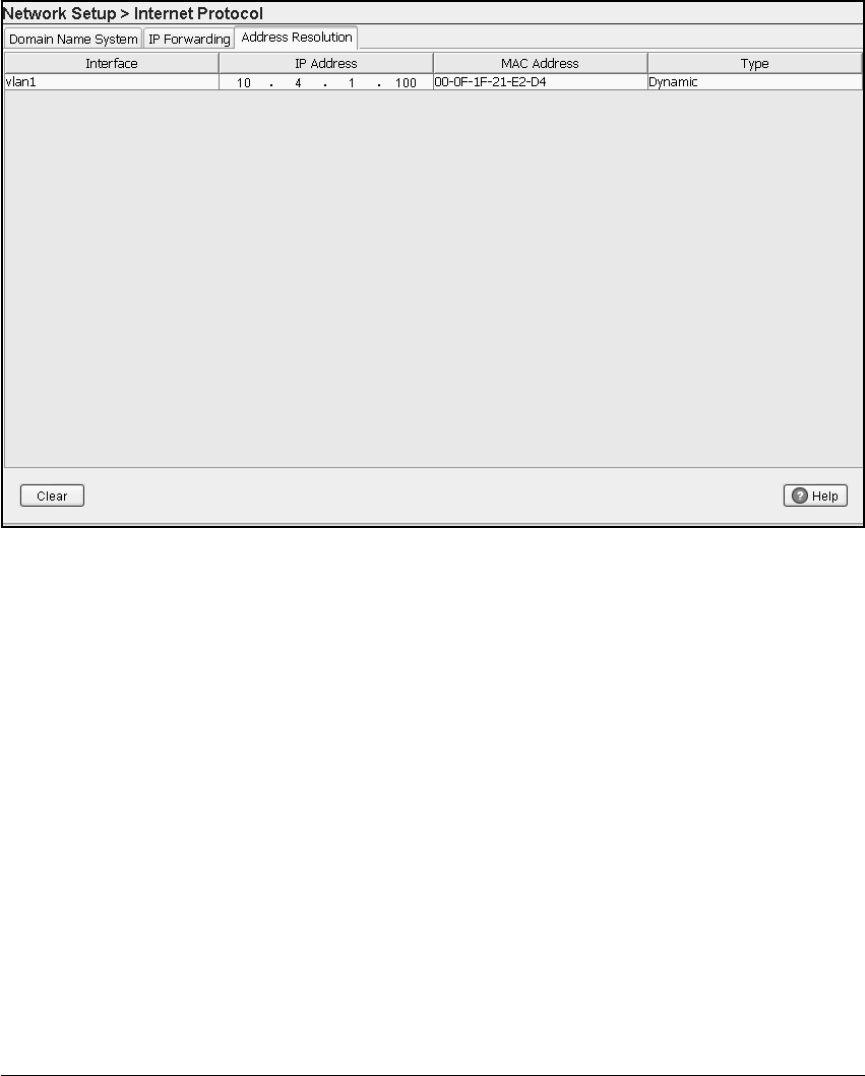

Figure 6-13. Network Setup > Internet Protocol > Address Resolution Screen

The Interface column lists the VLAN on which the IP address can be reached,

and the Typ e column indicates how the module learned to map that IP address

to that MAC address. For example, in Figure 6-13, Dynamic indicates that the

module learned the mapping by listening to frames received from the device

at 10.4.1.100.

If you want to remove an entry, select it and click the Clear button.

You can add manual entries to the ARP table to force the Wireless Edge

Services xl Module to respond to requests for an address that is not its own.

However, you must do so through the CLI.
