6-20

IP Services—IP Settings, DHCP, and DNS

DNS Client

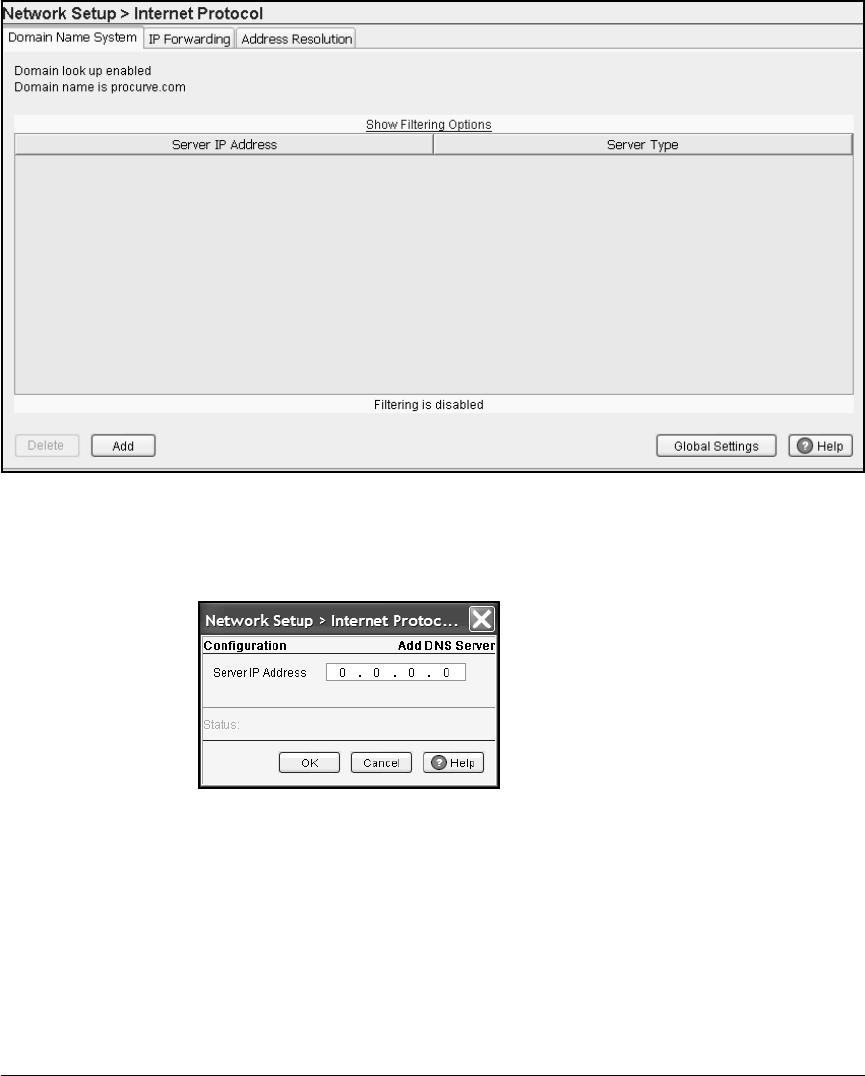

Figure 6-14. Network Setup > Internet Protocol > Domain Name System Screen

2. Click the Add button at the bottom of the screen. The Add DNS Server

screen is displayed.

Figure 6-15. Add DNS Server Screen

3. In the Server IP Address field, enter the IP address of the DNS server.

4. Click the OK button. The DNS server is now listed on the Network Setup >

Internet Protocol > Domain Name System screen.

5. Click the Save link at the top of the Web browser interface to save the

changes to the startup-config.
