6-26

IP Services—IP Settings, DHCP, and DNS

DHCP Server

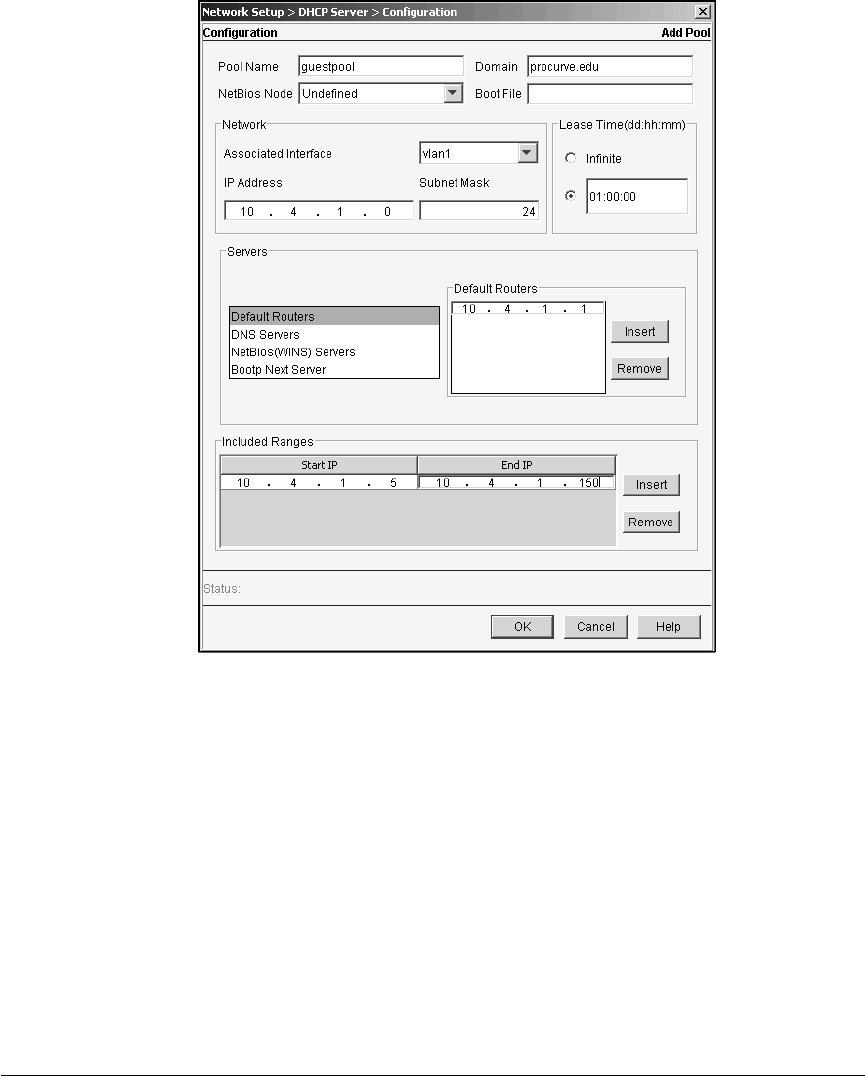

Figure 6-18. Add Pool Screen for Network Pools

3. In the Pool Name field, enter a name for the pool. You can enter up to 255

alphanumeric characters (no special characters).

The name is typically a descriptive text string that helps identify the

purpose of the pool or the set of clients that it is intended to serve.

4. In the Domain field, enter the domain name for the network on which the

Wireless Edge Services xl Module is running.

5. In the Associated Interface field, use the drop-down menu to select the

VLAN interface that you want to associate with this network pool.

This drop-down menu includes all of the module’s configured interfaces

(such as VLAN 1). The IP address and subnet mask assigned to the

associated interface are automatically inserted into the appropriate fields.
