6-33

IP Services—IP Settings, DHCP, and DNS

DHCP Server

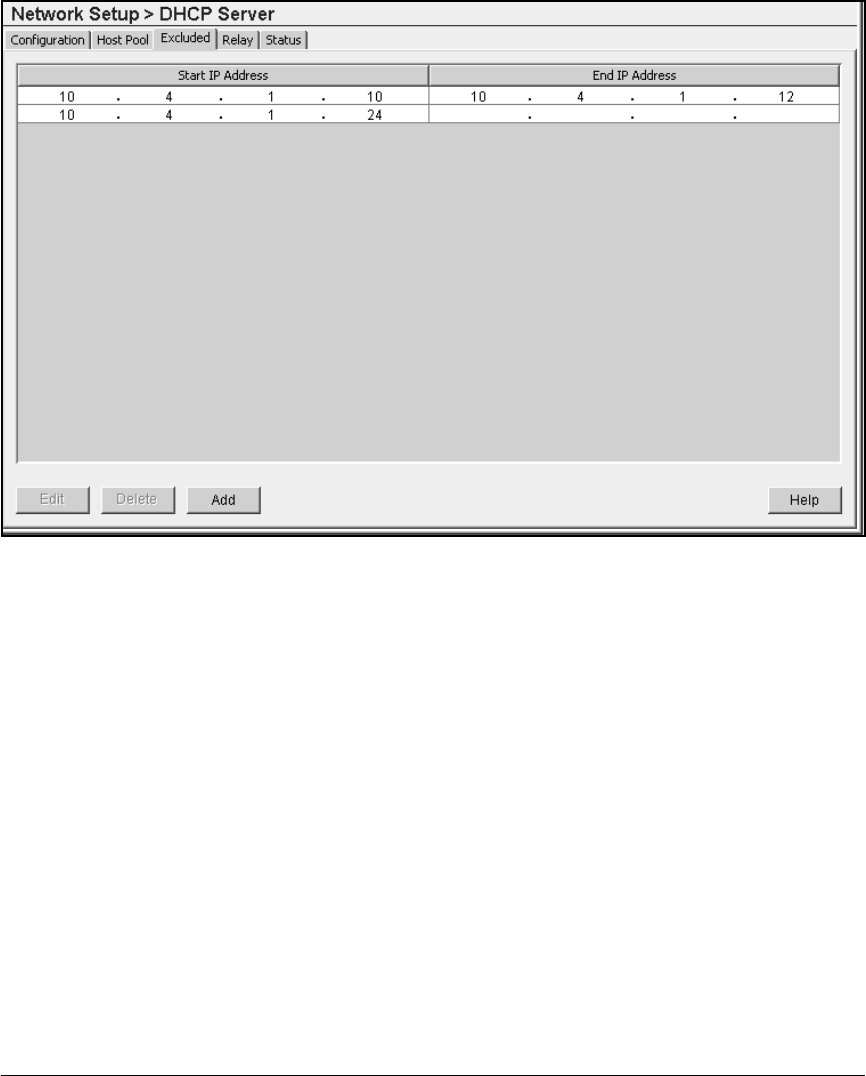

Figure 6-22. Network Setup > DHCP Server > Excluded Screen

5. Click the Save link at the top of the Web browser interface to save the

changes to the startup-config.

You can specify multiple ranges.

Enabling the DHCP Server

To enable the DHCP server, complete these steps:

1. Select Network Setup > DHCP Server > Configuration.

2. Check the Enable DHCP Server box.
