6-34

IP Services—IP Settings, DHCP, and DNS

DHCP Server

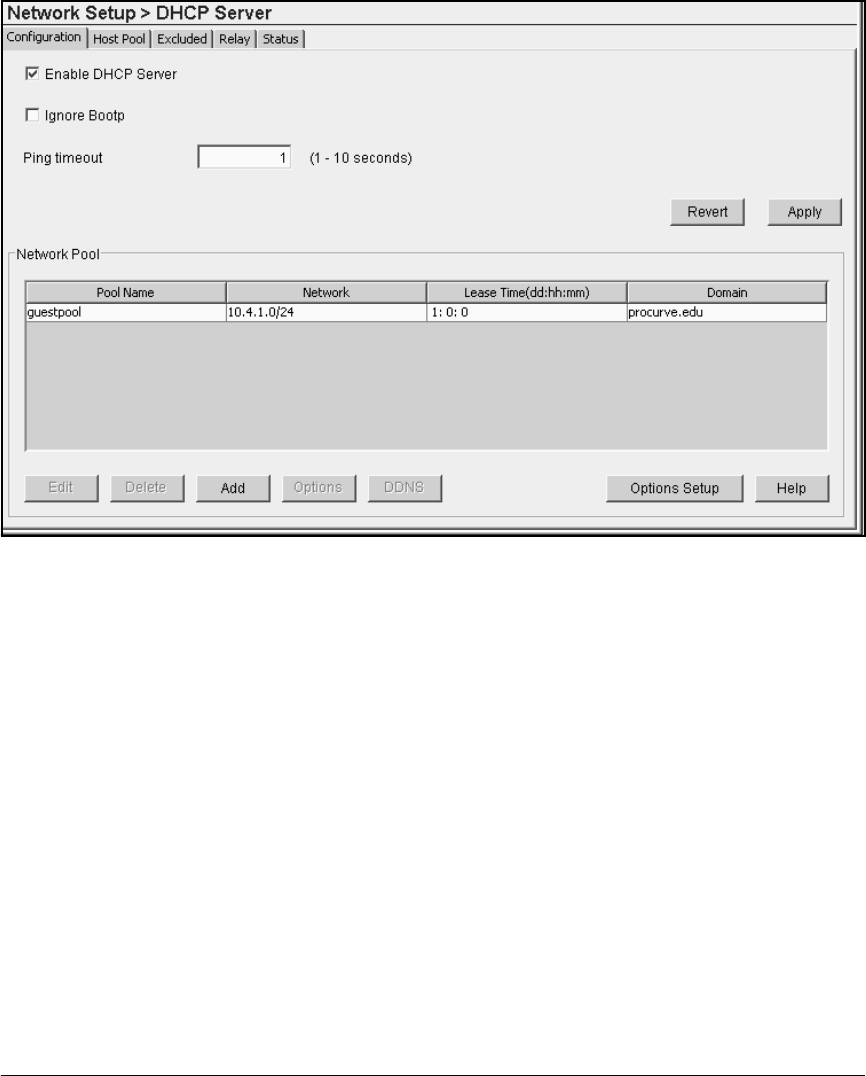

Figure 6-23. Enabling the DHCP Server

3. Click the Apply button.

4. Click the Save link at the top of the Web browser interface to save the

changes to the startup-config.

To disable the DHCP server, uncheck the Enable DHCP Server box and click the

Apply button.

Configuring Global DHCP Settings: Ignoring BOOTP

and Setting the Ping Interval

Two global settings apply to the Wireless Edge Services xl Module’s internal

DHCP server:

■ Ignoring BOOTP requests—BOOTP is an earlier protocol that uses the

same ports as DHCP. Like DHCP, BOOTP enables stations to receive

dynamic configurations, typically including the name and location of a

boot file. If your network includes devices that use BOOTP, it may also
