IP Services—IP Settings, DHCP, and DNS
DHCP Server
3. To configure an option for a host pool, complete these steps and then
proceed to step 4:
a. Click the Host Pool tab.
b. Select one of the pools. (See “Creating a Host Pool” on page 6-28 for
instructions on creating the pool.)
c. Click the Options button. The Pool Options screen is displayed.
4. In the Pool Options screen, click the Insert button.

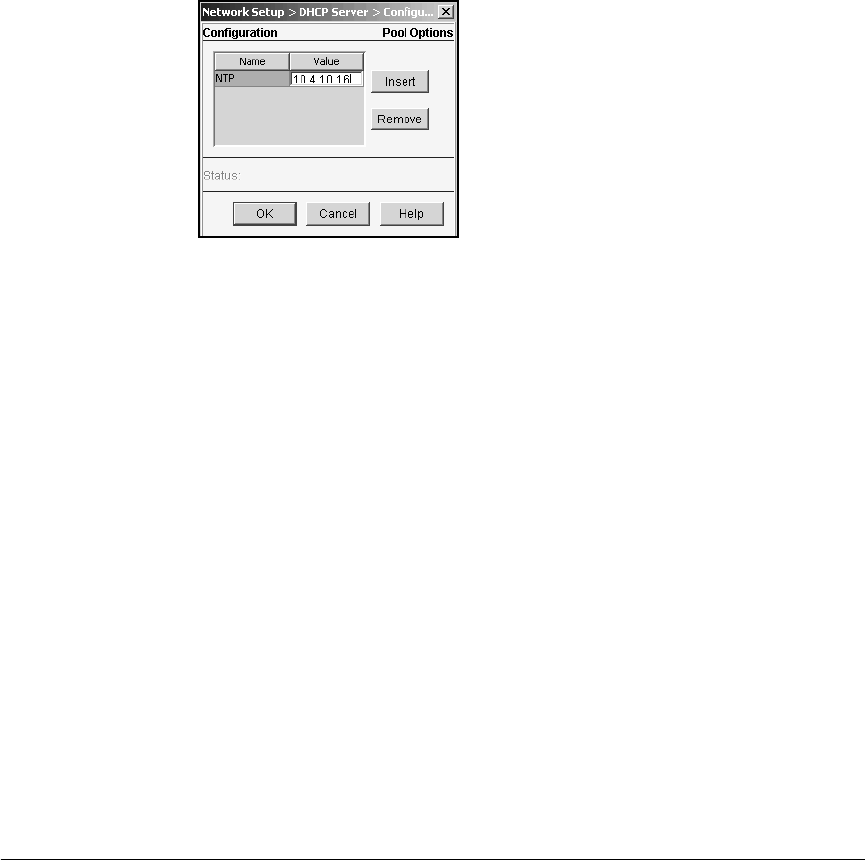

Figure 6-27. Specifying the Value for an Extended Option
5. Click the Name field. It turns into a drop-down menu that includes the
names of all of the options defined globally. (See “Setting Up Global
Options” on page 6-36.)
6. In the Value field, enter either an IP address or an alphanumeric string,
depending on whether the type specified for the global option is ip or ascii.
The Wireless Edge Services xl Module sends this value for the option to
DHCP clients.
7. Click the Insert button again to configure another option. You can config-
ure as many options as have been defined globally.
8. Click the OK button.
9. Click the Save link at the top of the Web browser interface to save the
changes to the startup-config.
