IP Services—IP Settings, DHCP, and DNS
DHCP Server
3. In the Interface field, use the drop-down menu to select the VLAN interface
that receives the DHCP requests.
4. In the Server fields, enter the IP addresses for up to four DHCP servers.
In each applicable Gateway field, use the drop-down menu to specify the
corresponding interfaces by which the DHCP servers may be reached. For
example, if the module’s default gateway knows how to route traffic to
the DHCP server, you would select the default VLAN.
5. Click the OK button.
6. Click the Save link at the top of the Web browser interface to save the
changes to the startup-config.
The configuration is displayed on the Network Setup > DHCP Server > Relay
screen. (See Figure 6-31.) The Interfaces section shows the interface from
which DHCP packets will be forwarded to the DHCP server. The Gateway
Information section shows the server IP address and the interface by which the
DHCP server can be reached.

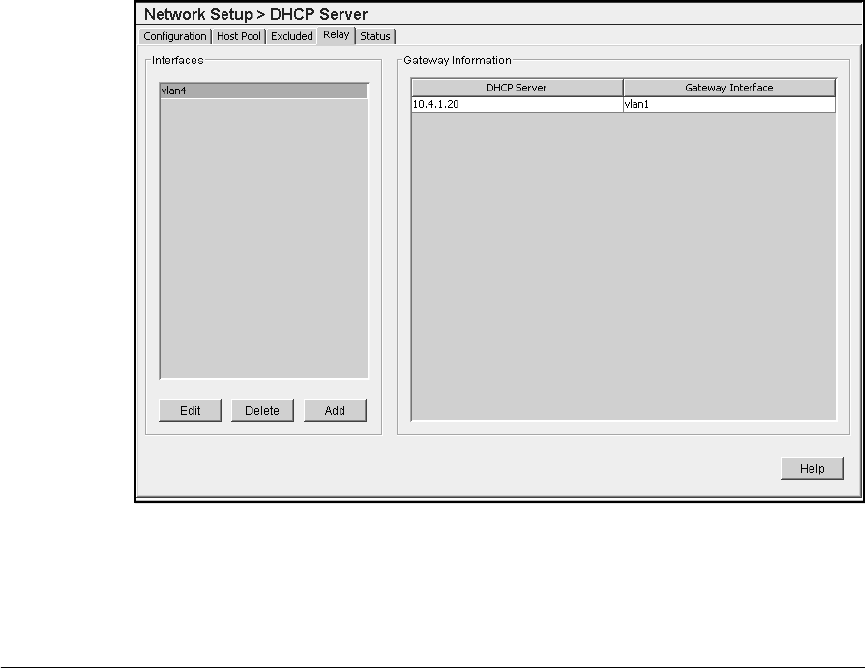

Figure 6-31. Viewing DHCP Relay Configurations
You can select the DHCP relay configuration for an interface and edit or delete
it by clicking the corresponding buttons.
