7-12
Access Control Lists (ACLs)
Configuring ACLs

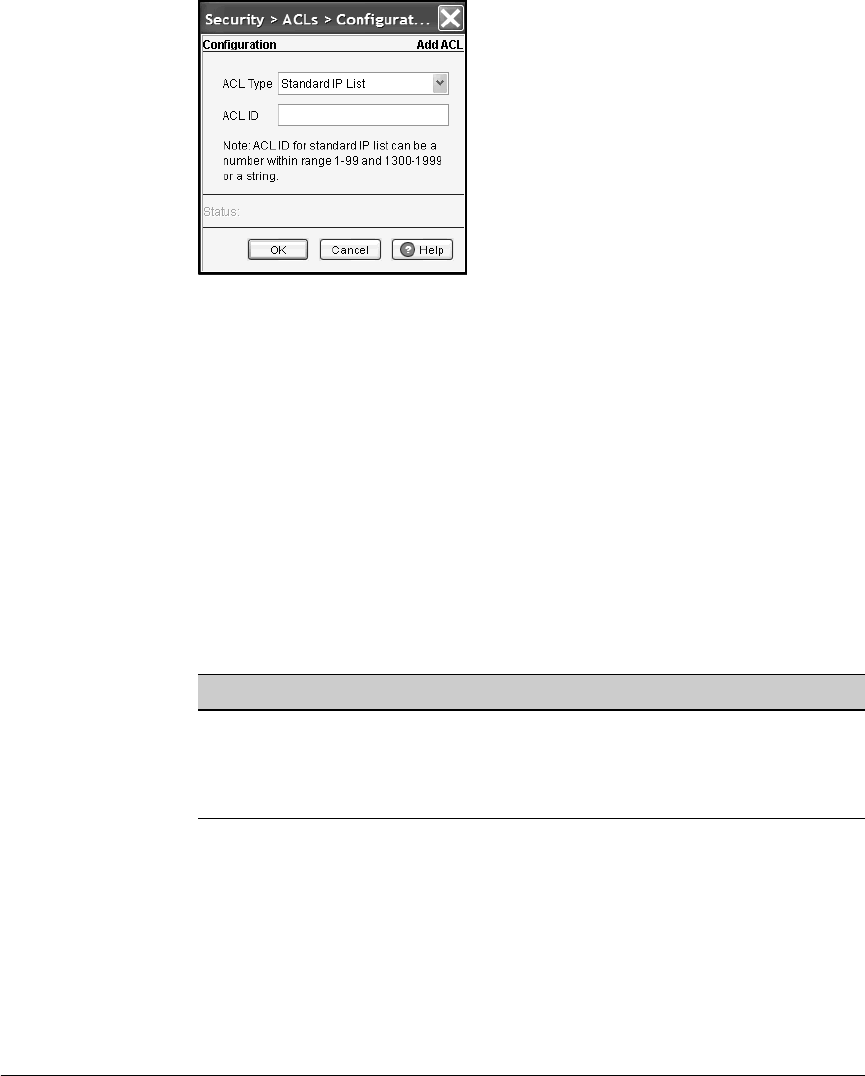

Figure 7-2. Add ACL Screen
3. In the ACL Type field, use the drop-down menu to select either the standard
IP, extended IP, or MAC extended ACL type.
4. In the ACL ID field, specify the ACL ID, which uniquely identifies the ACL.
ACL IDs can be either an ASCII string or a numeric value. Follow these
rules:
• String names for ACL IDs can contain alphanumeric characters as
well as the hyphen ( - ) and underline ( _ ) characters; spaces and
other nonalphanumeric characters are not allowed.
• Valid numeric ACL IDs depend on the ACL type; use the range of
values listed in Table 7-2.
Table 7-2. ACL Types and ACL ID Ranges
The numeric value of the ACL ID does not affect the precedence of ACLs.
However, precedence is important for the rules inside of a particular ACL;
you will set these precedence values later when you configure ACL rules.
5. Click the OK button. The ACL is now listed in the ACLs section of the
Security > ACLs > Configuration screen.
ACL Type ACL ID Range
Standard IP access list 1-99 and 1300-1999
Extended IP access list 100-199 and 2000-2699
MAC extended access list Any number outside of the ranges 1-199 and 1300-2699
