Access Control Lists (ACLs)

Configuring ACLs

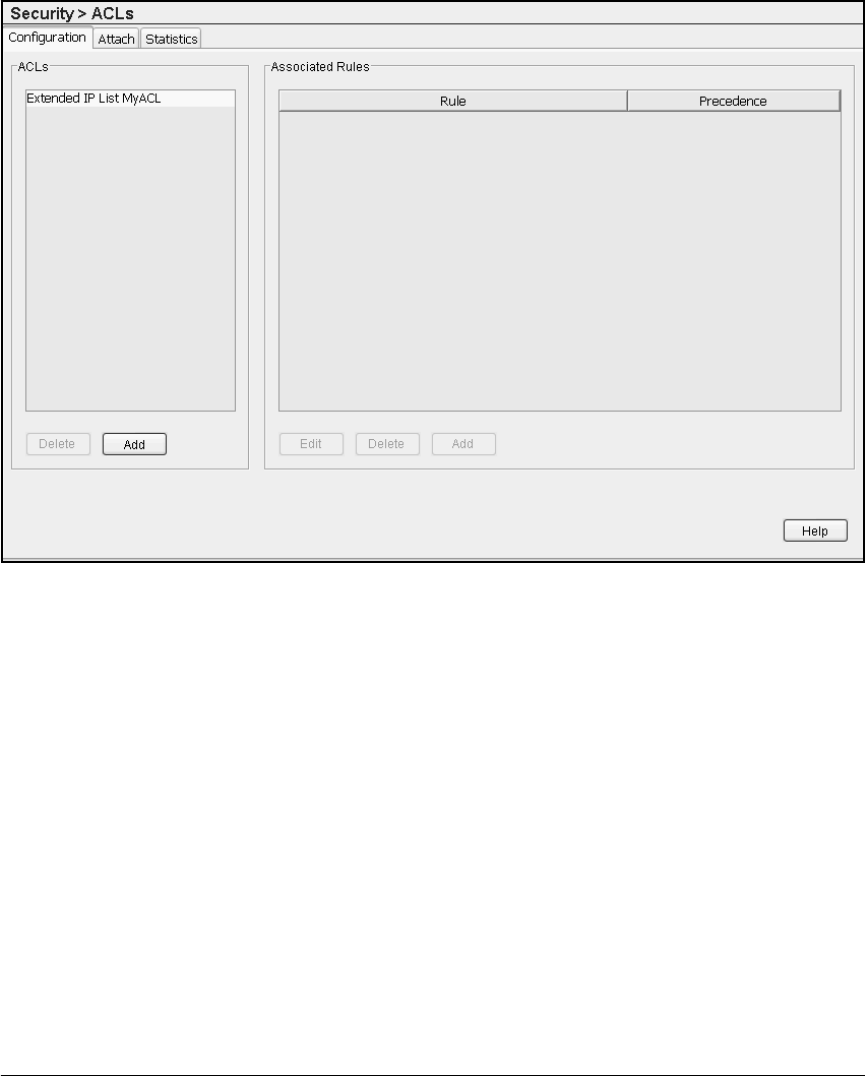

Figure 7-3. Security > ACLs > Configuration with ACL

Configuring Rules for ACLs

After you create an ACL, you must add rules to it. These rules actually select

and control the traffic.

For each ACL rule, you must specify the following:

■ the rule’s precedence

■ the operation (deny, permit, or mark) that the Wireless Edge Services xl

Module performs on selected packets

■ the filters that select a packet or frame according to fields in the header

You can configure up to 500 rules for each ACL, no matter what its type.
