Access Control Lists (ACLs)
Configuring ACLs

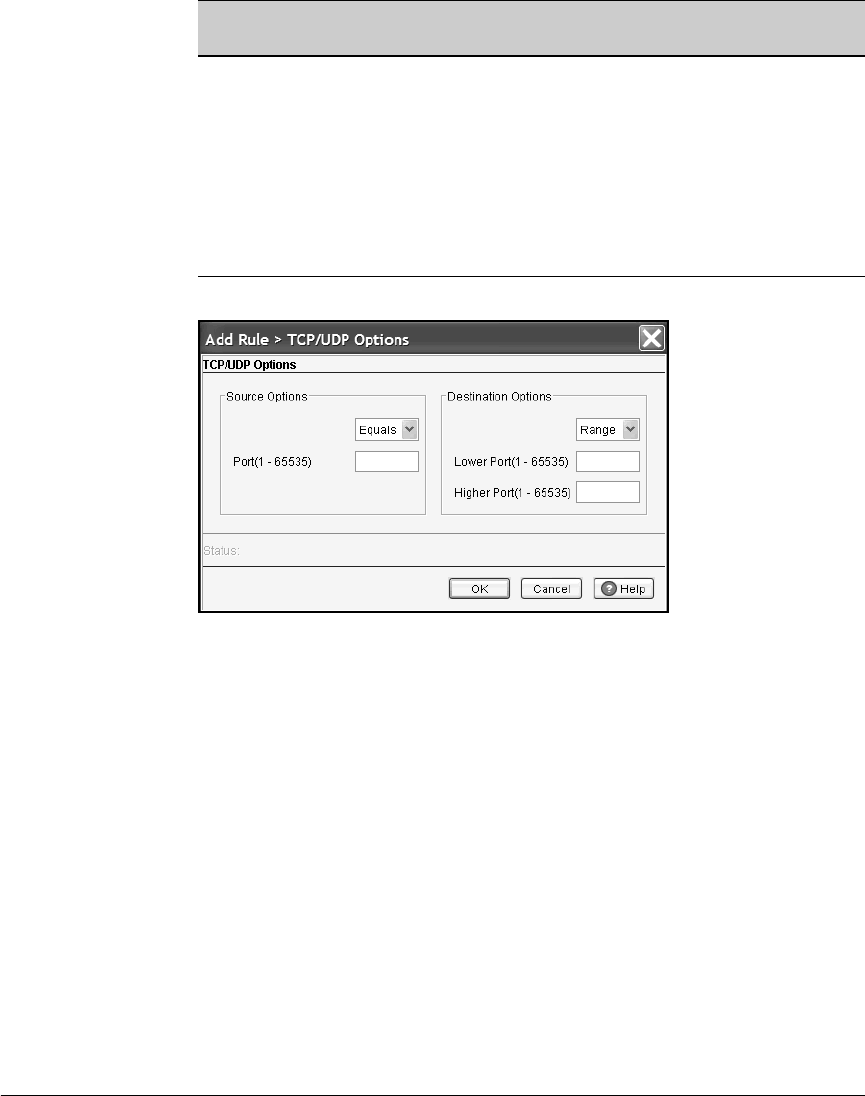

Figure 7-8. TCP/UDP Options Screen
b. If you selected the TCP or UDP protocol, the TCP/UDP Options screen
is displayed. Specify the source and destination ports for selected
traffic in the respective Source Options and Destination Options sec-
tions:
– Use the drop-down menu to select Equals (for one specific port)
or Range (for a range of ports).
– Enter the port number in the field beneath the drop-down menu.
Valid values are from 1 through 65,535. As shown in Figure 7-8, if you
select Range, you must enter two port numbers: one for the low end
of the range and one for the high end. The range is inclusive.
You do not have to specify both source and destination ports. Set the
destination port to control traffic associated with a particular VLAN.
For example, set the destination port to 80 to select HTML traffic.
4 Parameter Problem message 0 Erroneous header field encountered
1 Unrecognized Next Header type
encountered
2 Unrecognized IPv6 option
encountered
128 Echo Request message 0
129 Echo Reply message 0
ICMP
Type
Type Description ICMP
Code
Code Description
