7-27

Access Control Lists (ACLs)

Configuring ACLs

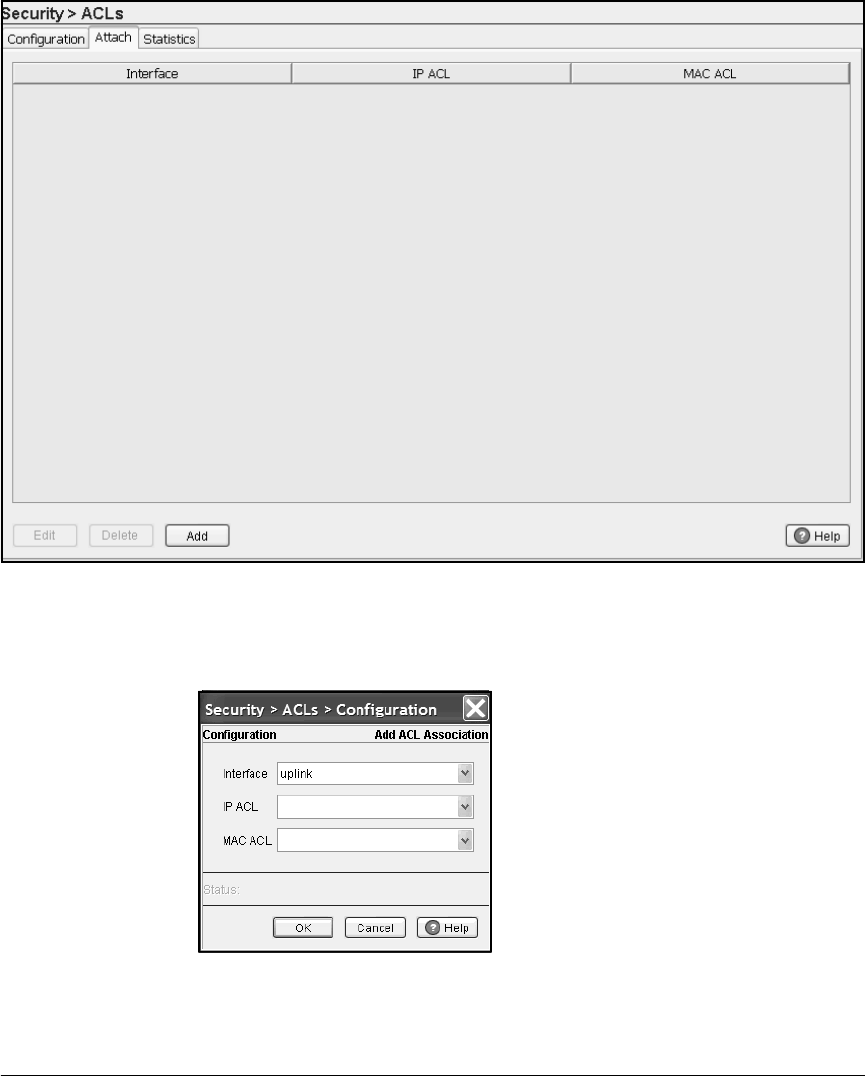

Figure 7-10. Security > ACLs > Attach

2. Click the Add button. The Add ACL Association screen is displayed.

Figure 7-11. Add ACL Association Screen
