Access Control Lists (ACLs)
Configuring ACLs

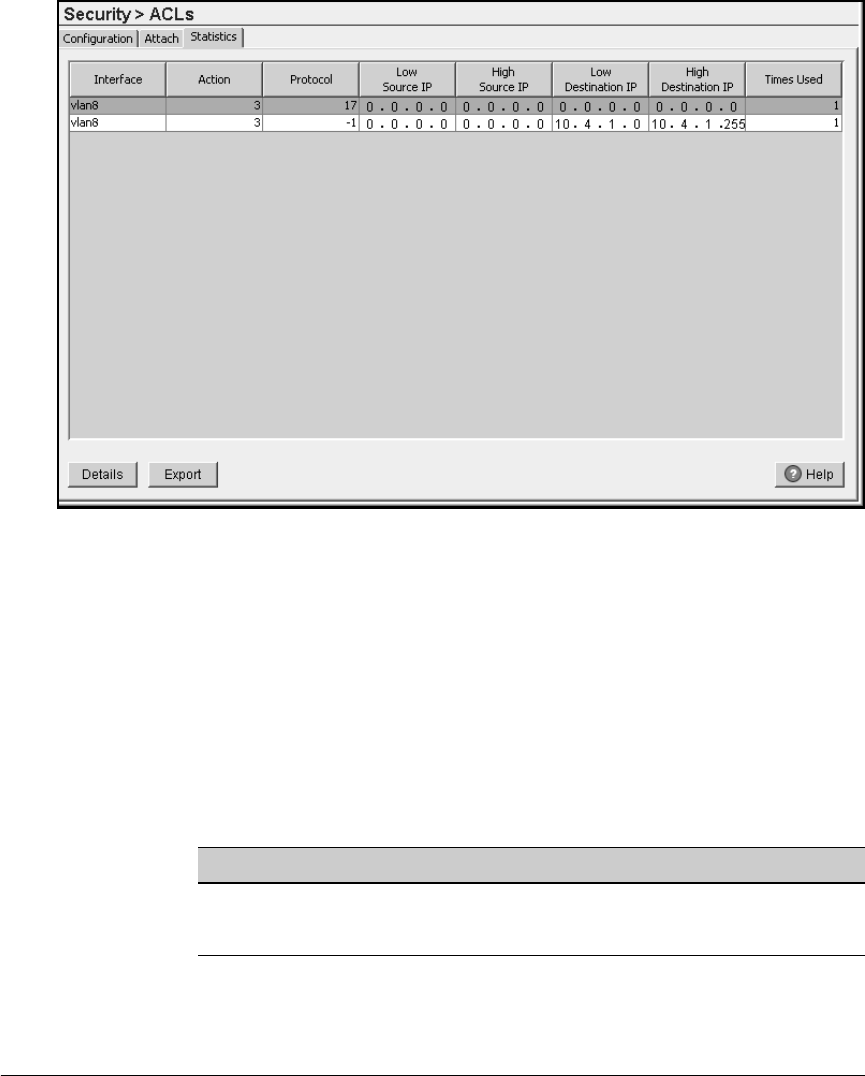

Figure 7-12. Security > ACLs > Statistics Screen
ACL statistics are displayed on the screen. (If you do not see any statistics,
you may need to edit your rules and check the Logging box.)
Each row provides information about one ACL rule:
■ Interface—the interface to which the ACL rule is applied (uplink, down-
link, VLAN, or tunnel interface)
■ Action—whether the module forwards selected packets or drops them
Refer to Table 7-6 for a key to the action ID.
Table 7-6. Action IDs for ACL Statistics
■ Protocol—protocol for selected packets
Table 7-7 provides a key for the protocols.
ID Protocol
2 drop—a deny rule
3 forward—a permit or mark rule
