Introduction
ProCurve Wireless Edge Services xl Module
If you are using your Wireless Edge Services xl Module’s internal RADIUS
server, you can set this user-based policy: VLAN ID.
Controlling Traffic Manually. You can also control traffic according to
manually created rules on the Wireless Edge Services xl Module; however,
such policies are generally less flexible.
You can control these settings:
■ VLAN assignment—When configuring VLAN assignments manually, you
must assign an entire WLAN to the same VLAN. For example, suppose
users A, B, and C connect to WLAN 1. User A is in the Marketing depart-
ment, user B is in the Engineering department, and user C is a guest. With
either an external or the module’s internal RADIUS server, you can
configure the module to place each user in a different VLAN. If you
manually configure the settings on the Wireless Edge Services xl Module,
you must place all the users in the same VLAN, as shown in Figure 1-13.

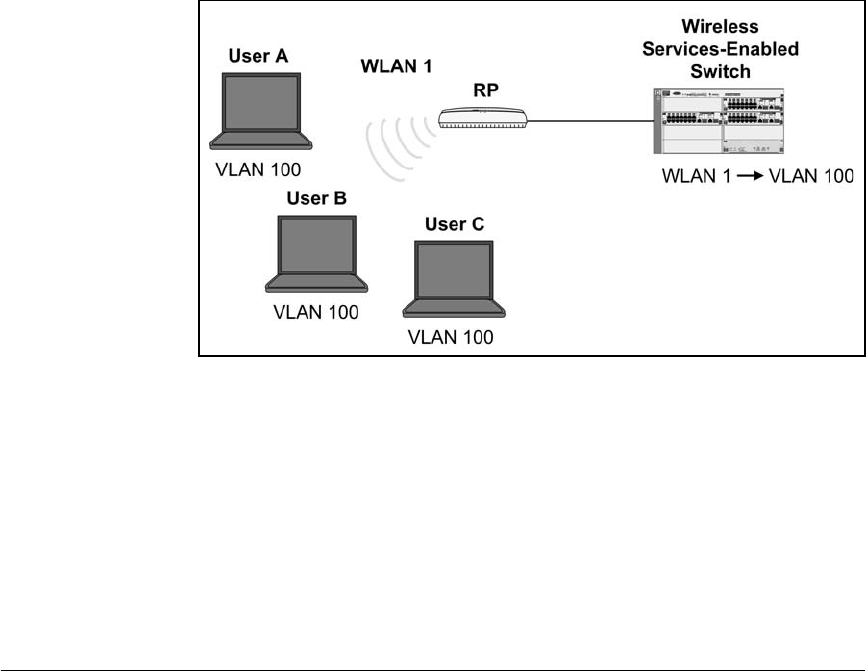

Figure 1-13. Assigning VLANs Manually
For instructions on configuring the VLAN assignment, see Chapter 4:
Wireless Local Area Networks (WLANs).
■ ACLs—The Wireless Edge Services xl Module’s internal firewall supports
a variety of options for ACLs, which are described in “ACLs” on page 1-38.
Depending on the ACL type, you can control traffic based on source
address, destination address, application, WLAN, 802.1p priority, and
other criteria.
You cannot configure rate limits manually.
