Configuring Network Address Translation (NAT)
Planning the NAT Configuration
You should also determine which NAT implementation method you are using.
For example, if you want to conserve IP addresses on your LAN, you will
probably decide to use dynamic NAT on inside traffic. If you want to allow
wireless users access to private Web or FTP servers with concealed IP
addresses, you will use static NAT.
Planning the Configuration for Dynamic NAT
If you are using dynamic NAT, you must use ACLs to specify which traffic the
Wireless Edge Services xl Module NATs. Consider which IP addresses these
ACLs should select. For example, if you want to NAT all traffic from wireless
stations in a particular WLAN, you can create an ACL that permits any IP
address and specifies that particular WLAN.
You may want the Wireless Edge Services xl Module to NAT traffic from
wireless stations before that traffic enters your wired network. In this case,
you would first configure the module to place wireless stations in a particular
VLAN and act as a DHCP server, assigning the stations IP addresses in a
corresponding subnet. Before the module forwarded this traffic to the wired

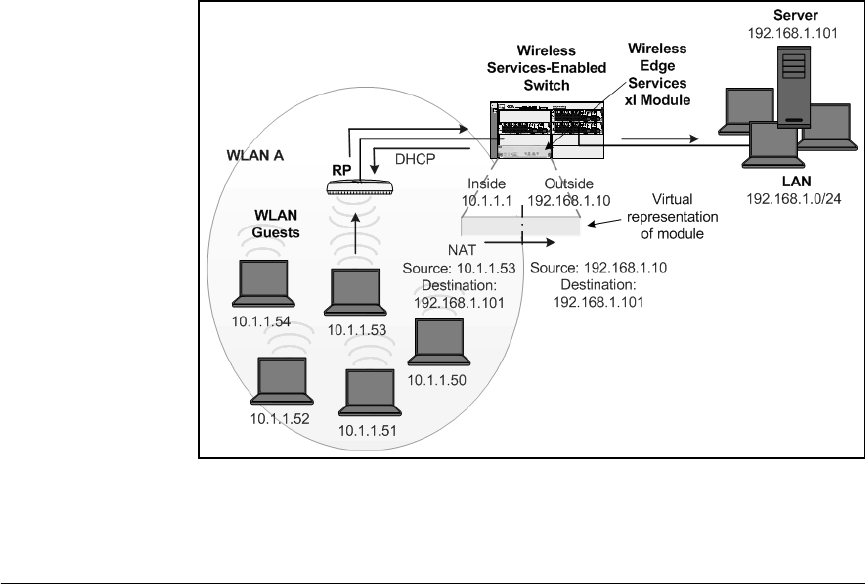

network, it would NAT the traffic to a single IP address, as shown in Figure 8-7.
Figure 8-7. Dynamic NAT on a Sample Network
